FOXBORO-FBM217-RH914TR

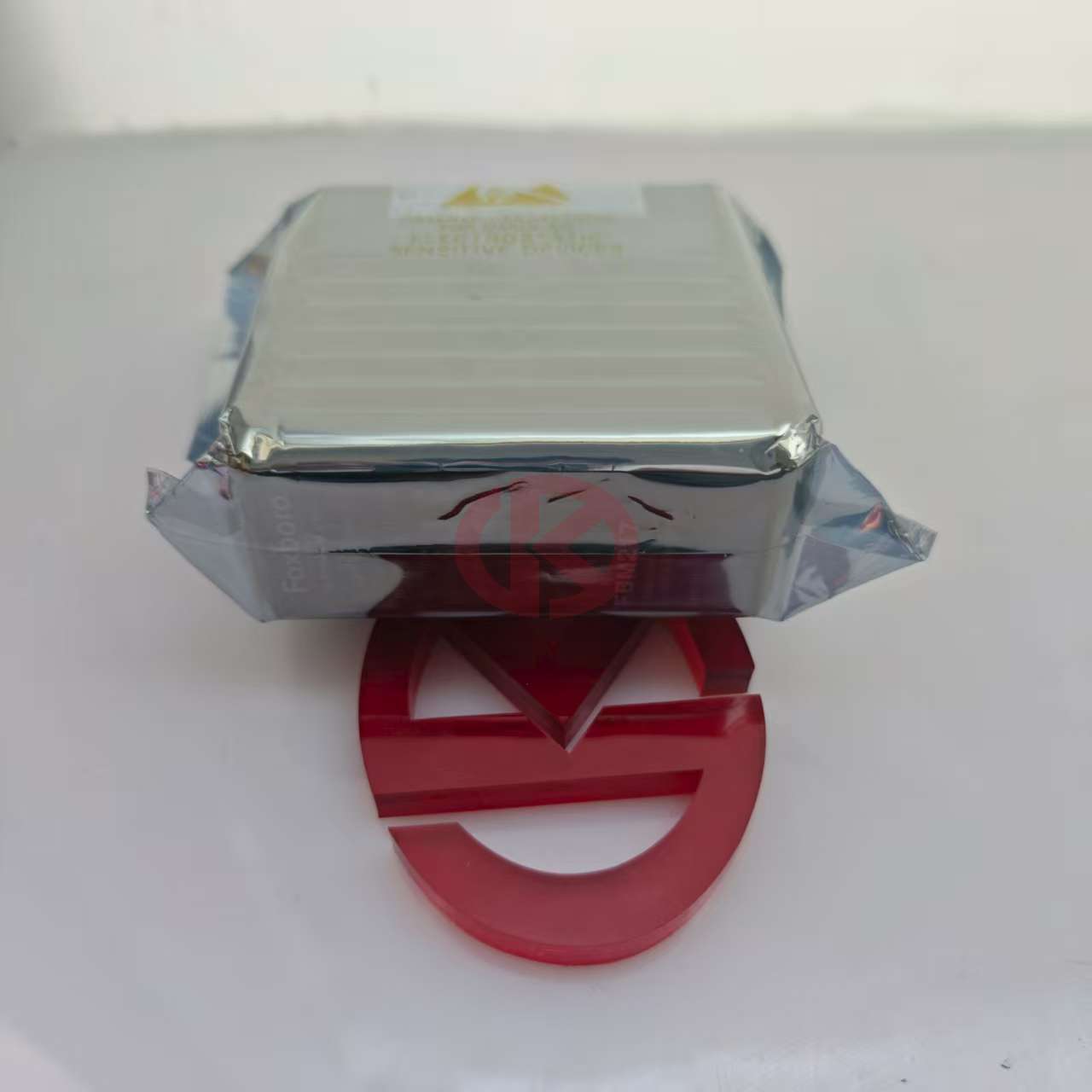

FOXBORO FBM217 RH914TR Discrete Input Interface Module
Key features of the FBM217 are:
Thirty-Two (32) discrete inputs
Supports discrete input signals at voltages of:
• 15 to 60Vdc
• 120 V ac/125 V dc
• 240V ac
Single or redundant modules
Compact, rugged design suitable for enclosure in
Class G3 (harsh) environments
Executes the programs for Discrete Input, Ladder
Logic, Pulse Count, and Sequence of Events,
with the configurable options: Input Filter Time
and Fail-Safe Configuration
Various Termination Assemblies (TAs) that
contain:
• High voltage attenuation and optical isolation
for inputs
• External power connection for device
excitation.
The FBM217 Discrete Input Interface Module
provides 32 input channels, each accepting a 2-wire
input from a dc voltage source. Associated
termination assemblies (TAs) provide for discrete
inputs of under 60 V ac, 120 V ac/125 V dc or
240 V ac. The module performs signal conversion
required to interface the electrical input signals from
the field sensors to the Module Fieldbus.
Depending on the type of I/O signal required, the TAs
contain current limiting devices, high voltage
attenuation circuits, optical isolation and external
power source connections.
The module with its associated TA supports the
following discrete inputs:
FBM217 30 V dc, 125 V dc, 120 V ac,
or 240 V ac Voltage monitor or
Contact sense
The module can be used as a single unit, or as a
redundant pair (two FBM217s). When used as a
redundant pair, the modules combine to provide
redundancy at the Fieldbus Module (FBM) level, with
field input signals received from one common
termination assembly though a redundant adapter
affixed to the FBMs' baseplate. The field input current
for redundant modules is doubled. A redundant
digital input block in the control software validates
each input in conjunction with information to/from the
module, and selects the input with the highest quality
for processing in the control strategy.
In a redundant configuration, contact sense power
from each module is diode OR'd together in the
redundant adapter to assure redundant power.
A redundant contact input function block, CINR, is
used for each redundant pair of inputs. The CINR
block handles input reads and initialization logic for
the redundant channels. On each execution cycle of
the CINR block, identical reads are sent to both
modules, fully exercising the fieldbus and the logic
circuitry of each module.
When connected to the appropriate TAs, the
FBM217 module provides functionality formerly
provided by the 100 Series FBM I/O subsystem. TAs
are available which support the functionality of the
100 Series main FBM07A/B, FBM08, FBM20, and
FBM24A/B/C (16 input main FBMs). Expansion TAs
are available for use with these main FBM TAs to
support the functionality of expansion FBM12,
FBM13, FBM21, or FBM25A/B/C (16 input
expansion FBMs).
Invensys Operations Management offers premiere feedwater control systems using the Foxboro® I/A Series® Distributed Control System (DCS). Recent implementations have offered operation philosophy enhancements, improved startup and runtime performance and significant reduction of unplanned unit trip outages. These advanced control techniques allow for less operator required interaction, more time of automatic control - including during start-up and shut-down when most unit trips are caused - making the entire control system more capable of handling process upset conditions along with normal operation.
FEM100
ZCP270
FCP270
FCM2F2
FCM2F4
FCM2F10
FBI100
FBI200A
FBI200
FBM201/b/c/d
FBM202
FMB203/b/c
FBM204
FBM206
FBM207/b/c
FBM208
FBM211
FBM212
FBM214b
FBM215
FBM216b
FBM217
