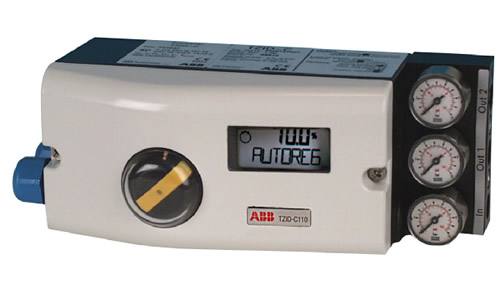

ABB智能定位器调试及注意事项:
打开定位器气源门。
2、向定位器提供4—20MA输入信号(端子为+11,-12)。
3、检查:
(1)按下并保持MODE
(2)另外短暂按下↑或↓,直到出现MODE 1.3(手动调整)
(3) 释放MODE
(4) 按下↑或↓,使执行器开关至其机械限位,并记录数值,角行程执行机构显示旋转角度。
建议限位位置:直行程执行机构>-28°并<+28°;角行程执行机构>-57°并<+57°。*小角度为25°。
4、切换至组态模式:
(1) 同时按下并保持↑和↓
(2) 另外短暂按下ENTER
(3) 等待一会儿,直到3秒倒计时完成
(4) 释放↑和↓
设备将自动返回到参数组P1._。
注意:PX.Y调节方法(同时按下并保持MODE和ENTER并保持;用↑或↓调节X / 按下并保持MODE;用↑或↓调节Y)
5、选择(用↑和↓)
参数P1.0 ACTUATOR/定义定位器安装形式角行程ROTARY或直行程LINEAR。
参数P2.3 ACTION/设定阀门正反作用方式反作用(REVERSE) 4~20MA对应开度100~0%或正作用(DIRECT) 4~20MA对应开度0~100%
参数P3.2 ZERO_POS/起始点方向设置<预设为全关即反馈杆逆时针方向>顺时针方向关闭CLOCKW或逆时针方向关闭CTCLOCKW。
注意:以上设置必须在自动调整之前完成(即第6步)。
6、启动自动调整功能:
(1) 同时按下并保持MODE和ENTER(或按下并保持MODE)
(2) 另外短暂按下↑或↓,直到P1.1显示出来
(3) 释放MODE
(4) 按下ENTER并一直按着直到倒计时结束
(5) 释放ENTER,自动调整功能启动。
(6) 如果显示COMPLETE,则表示“自动调整”成功,快速按下ENTER确认。也有可能因为某种故障“自动调整”被自动取消,同时显示错误信息。(CLOCKRUN 10 表示超程,需重调反馈杆)
7、 调整容许区域(tolerance band)(仅仅对于特殊用途的执行机构,比如特别小的执行机构)。通常,并不需要调整。
8、如果需要,测试以上设置。
9、保存以上设置:
(1) 同时按下并保持MODE和ENTER(或按下并保持MODE)
(2) 另外,快速按下↑或↓直到P1.5
(3) 释放MODE
(4) 用↑或↓选择NV_SAVE(保存退出)
(5) 按下并保持ENTER直到倒计时完成,然后释放ENTER。设置并保存在不宜丢失存储器中,并且定位器返回到操作状态MODE 1.3(手动调整)或MODE 1.0,然后确认调为<MODE 1.0(自适应远程控制)>,先前的操作模式就被再次击活。
