FIREYE 45UV5-1101

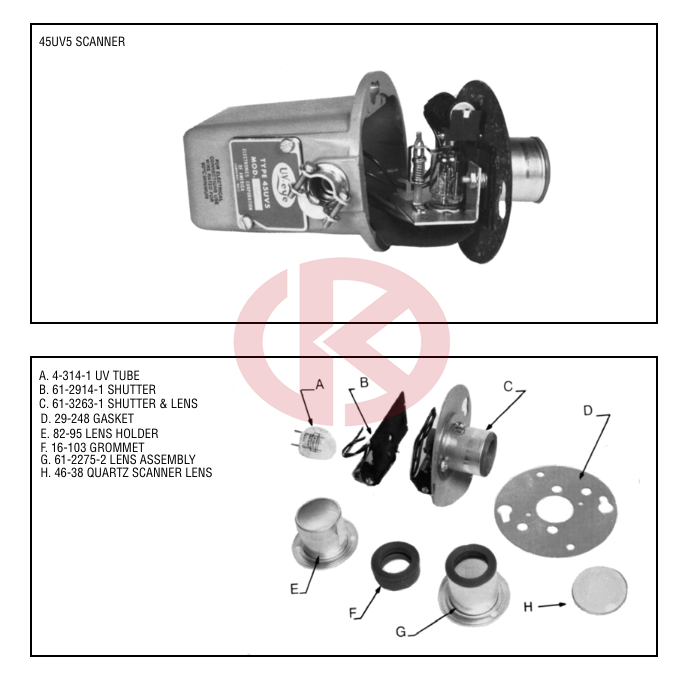

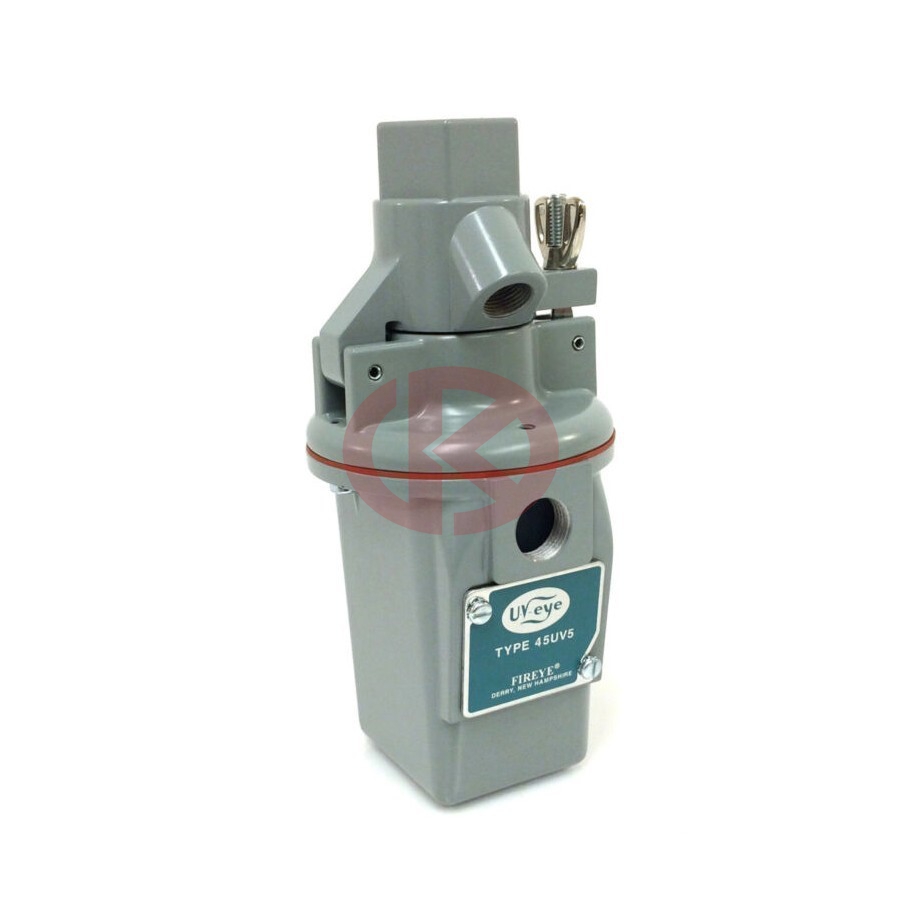

FIREYE 45UV5-1101 1009 UV self-checking Scanner
45UV5-1006, 1007 & 1009:
Two black leads which power the shutter via L1 & L2 and two red leads which drive the UV tube and carry the flame signal to S1 & S2 on the control. If it is necessary to extend the scanner wiring, the following instructions apply: Scanner wires should be installed.in a separate conduit. The wires from several scanners may be installed in a common conduit.
45UV5-1006, 1007, 1009
Selection of wire
— Use #14, 16, or 18 wire with 75 C, 600 volt insulation for up to 100 foot distances (signal loss approximately 20% at 100 feet).
— Asbestos insulated wire should be avoided. — Multiconductor cable is not recommended without prior factory approval.
— Extended Scanner Wiring. For extended scanner wiring up to 1500 feet, and for shorter lengths to reduce signal loss, use a shielded wire (Belden 8254-RG62U) coaxial cable, or equal for each red wire of the 45UV5.
The ends of the shielding must be taped individually on both ends and not ground
For multiple burner installations:
2. Distances are decreased when more than one set of scanner leads are installed in a common conduit. For example, the maximum distance for 2 scanners is 750 feet and for 3 or more scanners the distance decreases to 500 feet.
3. High voltage ignition wiring should not be installed in the same conduit with flame detector wires.
