Kollmorgen S22460-SRS 24-48A drives

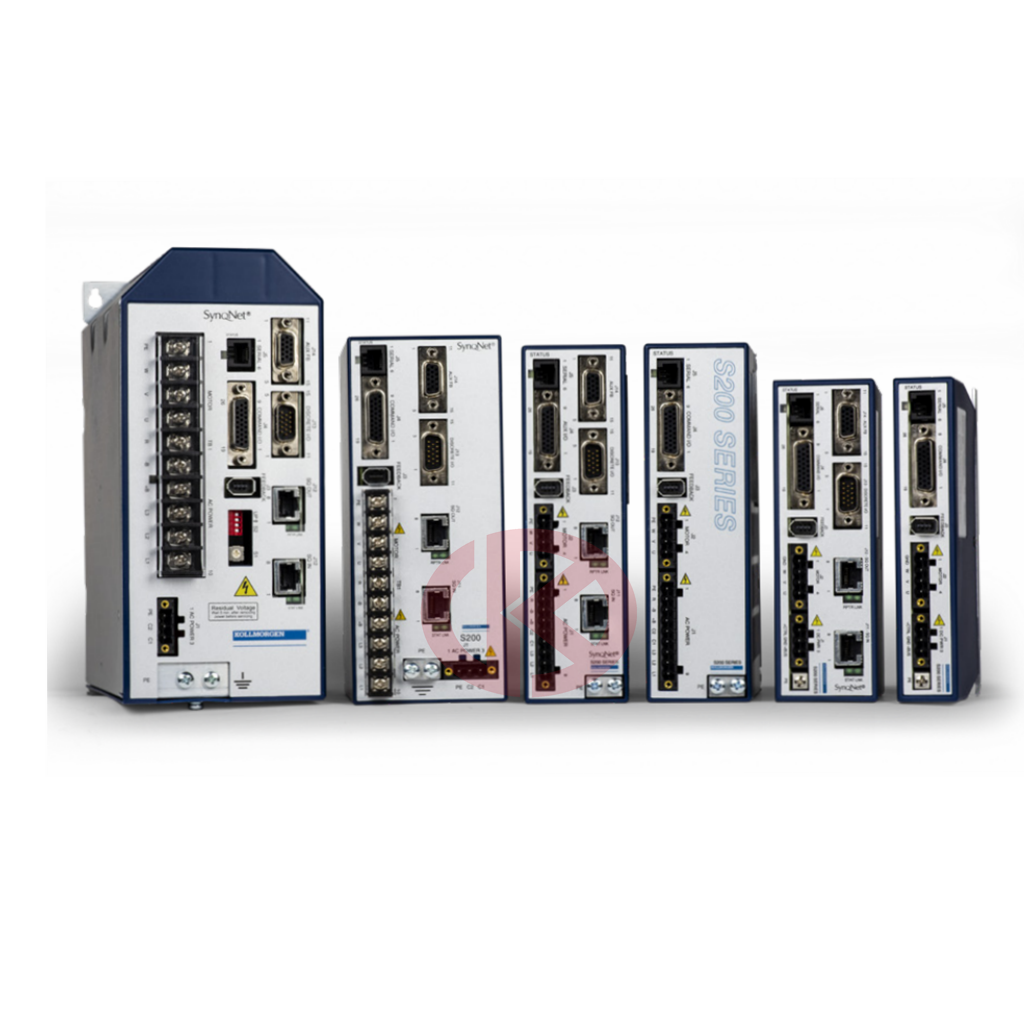

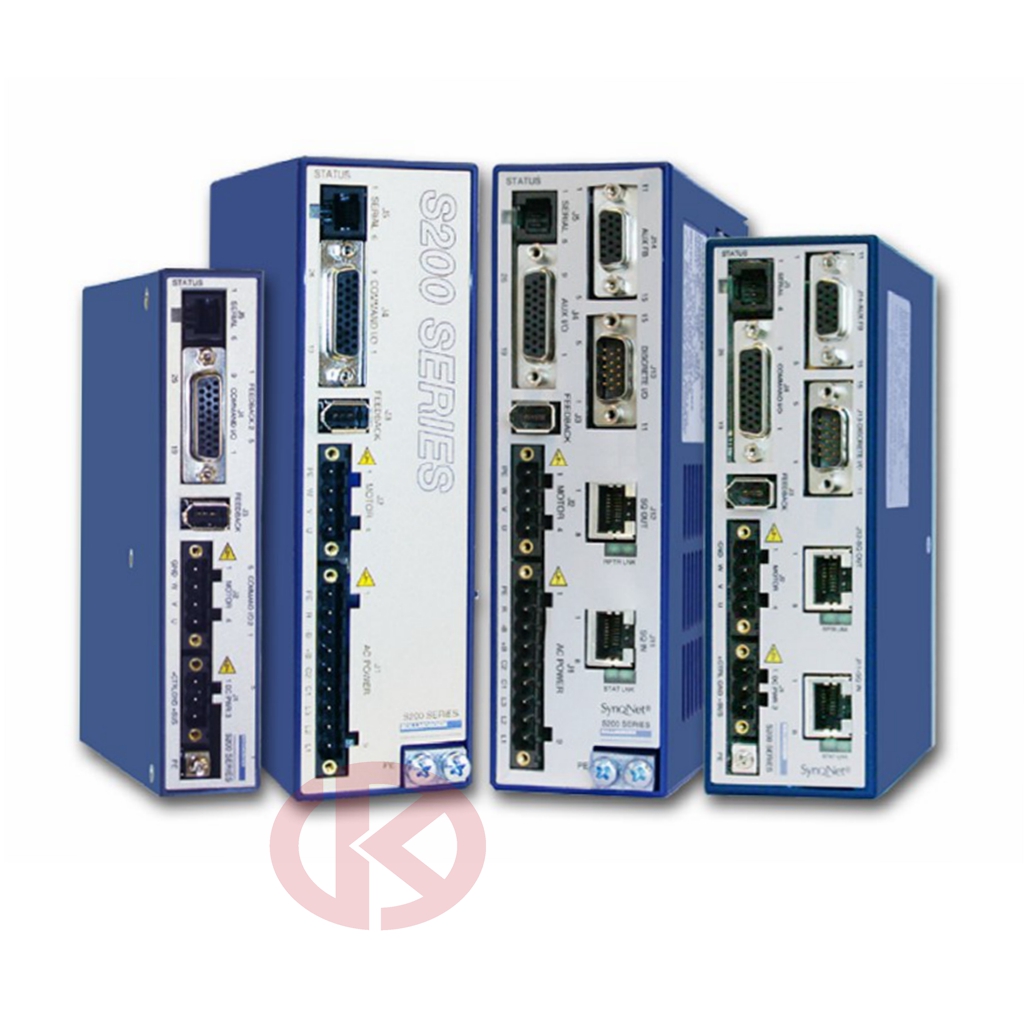

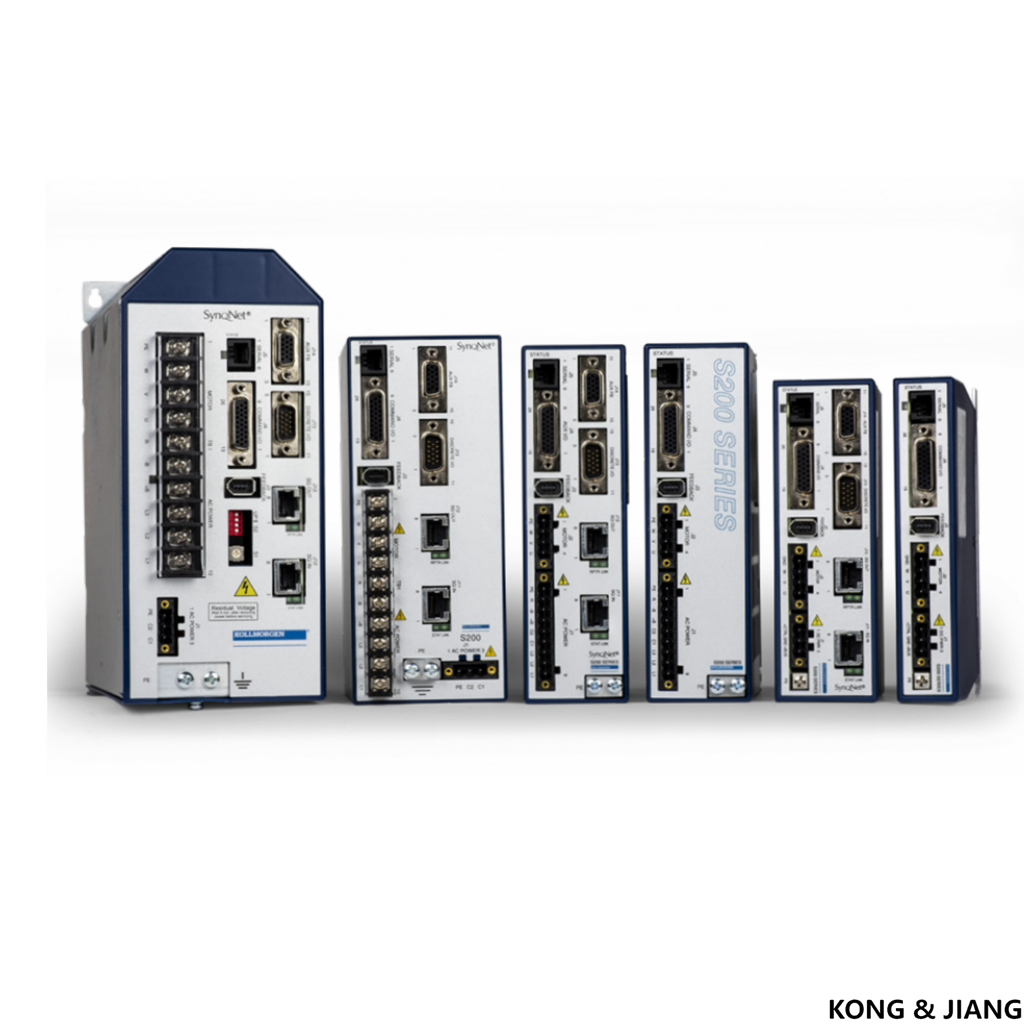

S200 SERIES DRIVES
Industry-Leading Performance In A Small Package
Danaher Motion’s S200 brushless servo drives puts high performance servo technology
into a full power range family with dc input and ac input family members. Particularly for
lower power applications the S200 family provides a higher performing more robust option
than was previously possible without having to compromise on reliability or package size.

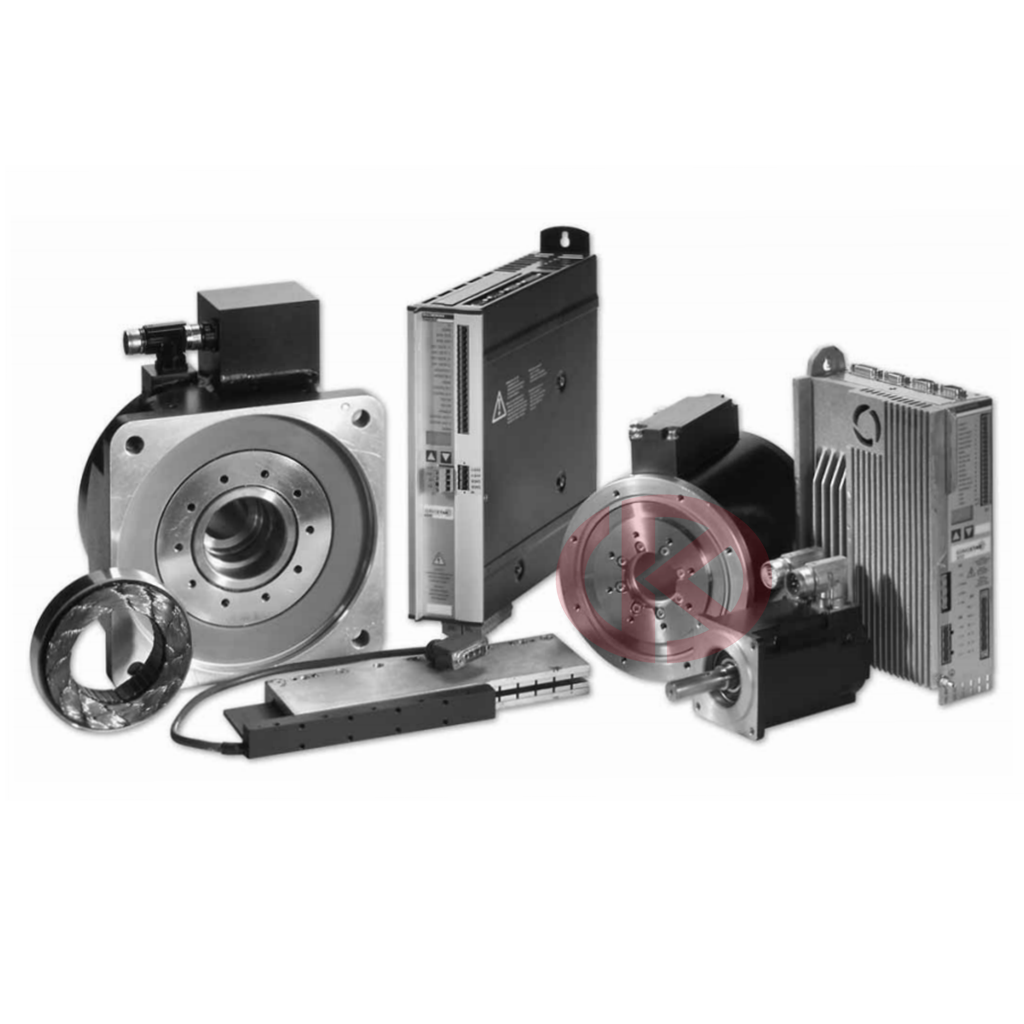

Coupling an S200 drive with Danaher Motion's AKM servomotor provides a complete servo
control solution designed to excel in applications such as semiconductor fabrication,
electronic assembly, packaging, medical, and woodworking equipment among others.
Danaher Motion's S200 servo drives are the first all-digital industrial drives with a velocity
loop bandwidth up to 800 Hz, offering unmatched system throughput and simplified tuning.
High resolution (24 bit) feedback and high performance 3-5 kHz current loop bandwidth
provide smooth motion and rapid start and stop action to optimize machine performance.
Smart feedback and industry leading high bandwidth deliver fast and accurate "plug and
play" commissioning by eliminating the need for servo loop tuning in most applications.
Base S200 servo drives come standard with torque or velocity control, as well as with
factory options that support the SynqNet motion network or add pre-settable Indexing with
CANopen communications. The factory option cards also add interfaces to additional motor
feedback devices such as Comcoder, 1 Vp-p Sin-Cos, EnDat 2.1, and EnDat 2.2 running in
2.1 compatibility mode. The option card EnDat interface accommodates single and multiturn
absolute rotary or incremental and absolute linear encoders. The drives operate with
AC (120/240 VAC) or DC (20-90 VDC) power sources and have current ratings from 1.5
ARMS continuous to 48 ARMS peak. Their compact footprint ranges from 1.1 in (28.7 mm)
wide and 6.0 in (152.4 mm) tall to 3.8 in (94.6 mm) wide and 6.39 in (213 mm) tall with
depths ranging from 3.9 in (100.8 mm) to 7.57 in (192.4 mm), allow them to fit into tight
spaces. They are UL 508C recognized, CE marked, and conform to EN50178 and
EN61800-3 standards
Delivery:
Warranty:
All our products are covered by our own warranty.
Payment method:
Quick Quote: Receive price and availability today!
