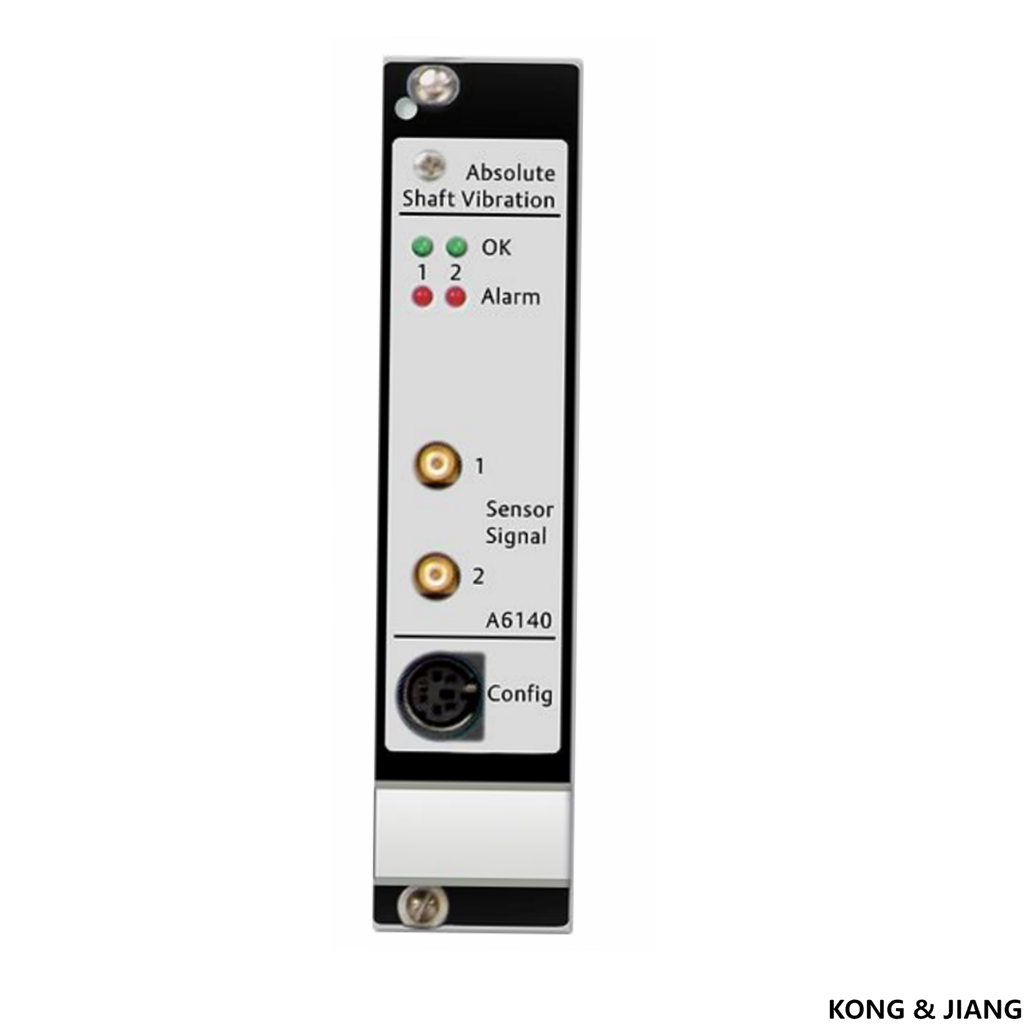

A6140 Shaft Absolute Vibration Monitor
The Shaft Absolute Vibration Monitor is designed for high reliability for the plant’s most
critical rotating machinery.
This 1-slot monitor is used together with other AMS 6500 monitors to build a complete
API 670 machinery protection monitor. Applications include steam, gas, compressors
and hydro turbo machinery. The main functionality of the Shaft Absolute Vibration
monitoring module is to accurately monitor shaft absolute vibration and reliably
protect machinery by comparing vibration parameters against alarm setpoints,
driving alarms and relays.
The shaft absolute transducer system consists of a relative displacement sensor and a
case-mounted vibration sensor located in the same external housing. The displacement
sensor is a non-contact sensor measuring shaft position and movement relative to the
case, and the case-mounted vibration sensor measures case absolute relative to
free space.
The two sensors are phase compensated for the different units and mathematically
subtracted to get absolute displacement of the shaft relative to free space.
Shaft absolute vibration is an important measurement on all sleeve bearing machines
for predictive and protection monitoring. Shaft absolute vibration should be selected
when the bearing case and the rotor mass are closely matched, as the bearing case may
have significant movement during machine operation.
The AMS 6500 is an integral part of PlantWeb® and AMS software. PlantWeb provides
operations integrated machinery health combined with the Ovation® and DeltaV™
process control system. AMS software provides maintenance personnel advanced
predictive and performance dia
Two-channel, 3U size, 1-slot plugin
module decreases cabinet space
requirements in half from traditional
four-channel 6U size cards
API 670 compliant,
hot swappable module
Front and rear buffered
and proportional outputs,
0/4-20 mA output, 0 - 10V output
Self-checking facilities
include monitoring hardware,
power input, hardware temperature,
sensor and cable
For connecting one displacement
sensor and one seismic, or piezoelectric
sensor, so that the combined output is
shaft absolute relative to free space
Use with displacement sensor 6422,
6423, 6424 and 6425 and driver CON
011/91, 021/91, 041/91 and casemounted
piezo electric velocity sensor
