GE IC754VGI06MTD 6" QuickPanel™ View
GE IC754VGI06MTD 6" QuickPanel™ View
Products: 6" QuickPanel™ View
IC754VSI06MTD
IC754VSI06STD
IC754VHI06MTD
IC754VHI06STD
IC754VBI06MTD
IC754VBI06STD
IC754VGI06MTD
IC754VGI06STD
The QuickPanel View has an integrated flat-panel color or monochrome display,
depending on model. The color model (IC754VxI06STD) is backlit, measures 5.7"
diagonally, and uses passive STN technology. The monochrome model
(IC754VxI06MTD) is backlit, measures 5.7" diagonally, and uses passive FSTN
technology.

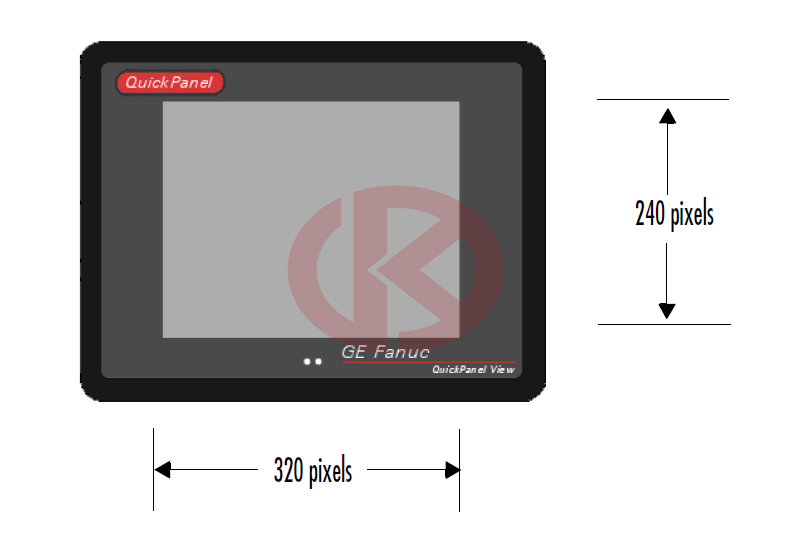

The resolution of the color display is 320 x 240 pixels with 65,536 colors; the
resolution of the monochrome display is 320 x 240 pixels with 256 shades of gray.
A backlight timer is featured on all models, extending backlight life by turning it off
automatically.
compact HMI computer available. The QuickPanel View is available in different
configurations to suit your requirements.
environment or as a stand-alone unit, the QuickPanel View is the ideal solution for
factory floor HMI.
Powered by Microsoft Windows CE. NETTM, today’s embedded operating system of
choice, the QuickPanel View provides a fast track for application program
development. The commonality with other versions of Windows simplifies porting
your existing program code. Another benefit of Windows CE is the familiarity of
the user interface, shortening the learning curve for operators and developers alike.
The availability of third-party application software makes this operating system
even more attractive.
The 6" QuickPanel View is an all-in-one microcomputer designed for maximum
flexibility. The design, based on an advanced Intel® microprocessor, brings
together a high-resolution operator interface with a variety of I/O options. With
many standard ports and expansion busses from which to choose, you can connect
to most industrial equipment.
The QuickPanel View is equipped with several memory types to satisfy even the
most demanding applications. A 32 MB section of DRAM is split between the
operating system, an object store, and application memory. A 32 MB section of
non-volatile FLASH memory, functioning as a virtual hard drive, is divided
between the operating system and persistent storage for application programs. The
retentive memory consists of 512 KB of battery-backed SRAM for data storage,
ensuring your valuable data will never be lost, even during a power failure.
The many features of the QuickPanel View make it an obvious choice for a world
of applications. Your smart choice will provide reliable operation for years to
come.
Delivery:
Warranty:
All our products are covered by our own warranty.
Payment method:
Quick Quote: Receive price and availability today!
Replacing an electrical equipment unit in a plant is a complex task that requires careful planning and execution to ensure safety and minimize downtime. Here is a general step-by-step guide on how to replace electrical equipment in a plant:
Pre-Planning:
Safety Precautions:
Shutdown Procedures:
Disconnection:
Removal of Existing Equipment:
Installation of New Equipment:
Testing and Commissioning:
Documentation:
Training:
Startup:
Throughout the process, it’s important to work closely with a team that includes electrical engineers, technicians, and maintenance staff. Communication is key to a successful equipment replacement. Additionally, always adhere to local electrical codes and standards to ensure compliance and safety. If the task is beyond the expertise of in-house staff, consider hiring a professional contractor experienced in industrial electrical work.
Obtaining industrial automation programming software typically involves the following steps:
Identify Your Needs:
Research Software Options:
Contact Equipment Manufacturers:
Purchase or Download:
Academic or Evaluation Versions:
Open Source Options:
Licensing:
Training and Support:
Legal and Compliance:
Installation and Setup:
Here are some common ways to obtain industrial automation programming software:
Remember to keep your software updated to benefit from the latest features and security patches. Also, ensure that you have the necessary backup and recovery procedures in place to protect your programming work.
