Yokogawa FIO System Overview Installation to Make I/O Modules Dual-Redundant

From:Yokogawa | author:Make | Release :2024-08-13 | 276 view: | Share:
Yokogawa FIO System Overview Installation to Make I/O Modules Dual-Redundant

Yokogawa AFV30D-A41252 Duplexed Field Control Unit, 1PC in stock | Wuhan Xieyuan


Yokogawa FIO System Overview Installation to Make I/O Modules Dual-Redundant

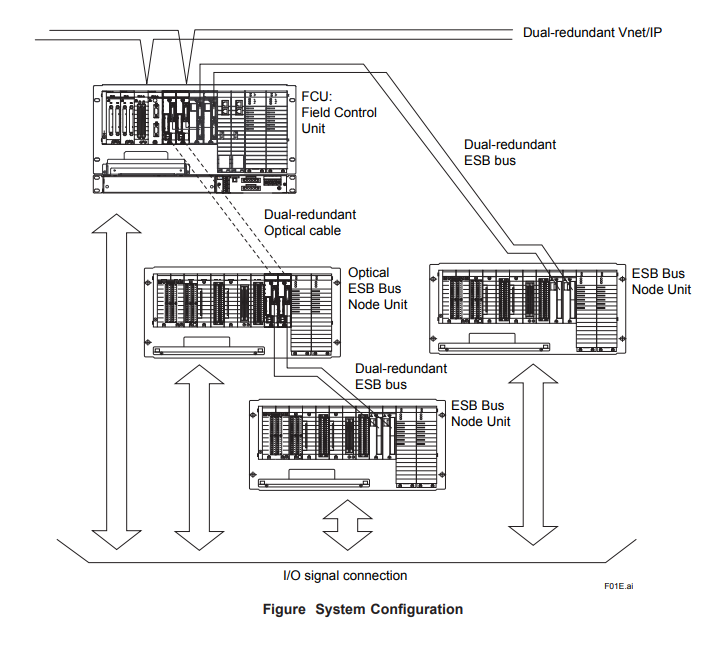

GENERAL The FIO (Fieldnetwork I/O) System is connected to the Field Control Unit (FCU) via an ESB, optical ESB, or ER bus. The Field Control Unit (AFV30/AFV40) is connected to an ESB Bus Node Unit (ANB10) or an Optical ESB Bus Node Unit (ANB11). The Field Control Unit (AFV10) is connected to an ESB Bus Node Unit (ANB10) or an ER Bus Node Unit (ANR10). A node unit consists of a power supply module, a bus interface module, and input/output modules that are installed in a base unit. The power supply module, bus interface module, and input/output modules can be configured redundantly. The Unit for Optical ESB Bus Repeater Module (ANT10U) can be used to connect the optical ESB bus in a chain or star configuration. The following shows a system configuration example.

ADV151Digital input   Module (24 v DC, lsolated)
ADV551Digital Output Module (24 v Dc,   lsolated)
ADV141Digital input Module (100 to 120   VAC, lsolated)
ADV142Digital input Module (220 to 240   VAC, lsolated)
ADV157Digital input Module

ADV557(24 V DC, Pressure Clamp Terminal   Only, lsolated)
ADV161Digital Output Module

ADV561(24 V DC, Pressure Clamp Terminal   Only, lsolated)
ADR541Digital input Module (24 v DC,   lsolated)
ADV859Digital Output Module (24 v DC,   lsolated)
ADV159Relay Output Module

ADV559(24 to 110 V DC1100 to 240 VAC,   Isolated)
ADV869Digital l/0 Module for Compatible   ST2 (lsolated Channels)
ADV169Digital input Module for Compatible   ST3 (lsolated Channels)
ADV569Digital Output Module for Compatible   ST4

(lsolated Channels)



Digital l/0 Module for Compatible   ST5

(lsolated, Common Minus Side Every   16-Channel)

Digital input Module for Compatible   ST6

(lsolated, Common Minus Side Every   16-Channel)

Digital Qutput Module for Compatible   ST7

(lsolated, Common Minus Side Every   16-Channel)
