Ovation™ Power Supply System 5X00785G09

Features

▪ Redundant power configurations, each with

separate external wide-range AC or DC feeds

▪ Separate main and auxiliary supplies in both the

primary and secondary configurations

▪ Dual wide-range input capabilities

▪ Diode auctioneered power feeds

▪ High-efficiency power supplies

▪ Modular fanless systems

▪ Redundant power feeds to each controller chassis

and to the I/O modules

▪ Continuous system monitori

Benefits

Benefits of the Ovation power supply scheme include:

▪ Separate main and auxiliary power supplies allow

easy replacement

▪ Elimination of cooling fans greatly reduces failure

risks

▪ Diode auctioneered power feeds assure

continuous power availability

▪ New design increases efficiency, reduces heat

generation and enhances equipment life

expectancy

▪ Dual input (AC and DC) capability reduces spare

parts

▪ Hot-swappable power supplies enable on-line

replacement

▪ Quick installation of the power supplies

minimizes downtime and production loss

▪ Power factor correction reduces power

consumption

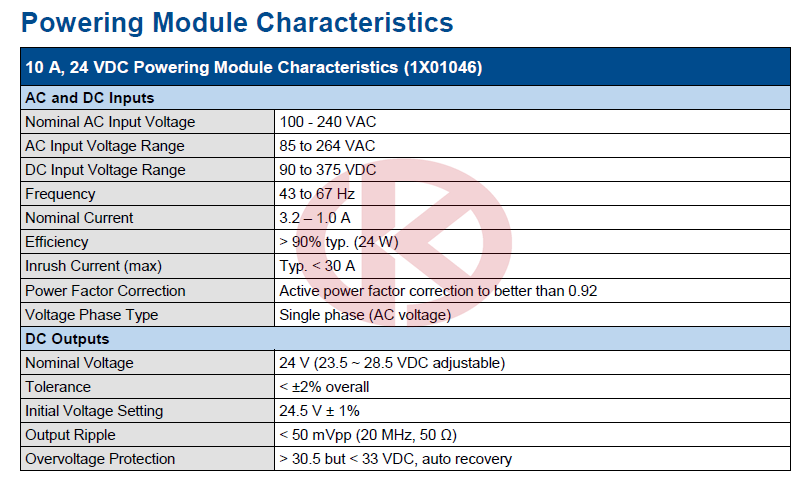

10-Amp Power Scheme

The 10-amp powering scheme includes:

▪ Redundant power supply configurations (primary

and secondary) that contain separate 10-amp

main and auxiliary power supplies and support a

wide range of input voltages (85-264 VAC @ 43-

67 Hz or 90-375 VDC) with an output power of

240 W.

▪ A power distribution module that distributes diode

auctioneered outputs to both the controller and I/O

busses.

The 10-amp scheme consists of a back-plate with

pre-mounted DIN-rails to which the power distribution

module, circuit breakers and four 10-amp power

supplies are attached. Life expectancy of the 10-amp

power supply is 8-years @ 40°C.

20-Amp Power Scheme

The 20-amp powering scheme includes:

▪ Redundant supply configurations (primary and

secondary) that contain separate 20 A main and

auxiliary power supplies that support a wide range

of input voltages (85-264 VAC @ 43-67 Hz or 90-

375 VDC) with an output power of 480 W.

▪ An auctioneering diode to ensure continuous power

availability

▪ A power distribution terminal strip

The 20-amp scheme consists of a back-plate with premounted
