Honeywell ControlEdge™ HC900 controller

Based on the provided documentation of the Honeywell ControlEdge™ HC900 controller,

the following product summary, application areas, and case studies are presented:

1. Product Overview

The Honeywell ControlEdge™ HC900 is a high-performance, modular process control and safety system designed to simplify engineering implementation and enhance operational efficiency. It combines process control (PLC) and distributed control system (DCS) functionalities with safety instrumented systems (SIS), suitable for ranging from simple single-loop control to complex interlocks and safety applications.

1. Core Features and Value

Process Control and Safety Integration: Capable of running both process control and safety applications within the same controller, using "non-interfering software" technology to ensure that safety functions do not interfere with control functions, thereby reducing total cost of ownership (TCO).

Safety Certification: New SIL-2 certification (verified by TUV), applicable to burner management systems (BMS), emergency stop systems (ESD), and other critical safety applications.

High Reliability and Redundancy: Supports controller redundancy (C75 CPU supported, redundant chassis up to 1 km apart), power redundancy, and communication redundancy, maximizing system uptime.

Easy Engineering and Maintenance: Provides intuitive software tools (such as ControlEdge HC900 Designer), supporting drag-and-drop programming, online configuration editing, batch editing, and version control, reducing engineering time.

Flexible Connectivity: Supports open Modbus/TCP protocol, serial Modbus RTU, HART-IP, and OPC server, facilitating integration with third-party HMI, SCADA, and Honeywell Experion PKS systems.

2. Hardware Specifications and Performance

Controller Model: Offers three performance levels of CPUs, supporting up to 15,000 function blocks.

C30 CPU: Up to 400 function blocks.

C50 CPU: Up to 2,000 function blocks.

C70 / C75 CPU: Up to 15,000 function blocks (supports redundancy).

I/O Capacity:

Total I/O Points: Each system can support up to 4,608 I/O points.

I/O Rack: One controller plus up to 11 remote I/O racks.

Analog Input: Up to 1,152 general-purpose inputs, with an accuracy of 0.1% (field calibration up to ±0.05%), supporting thermocouples, RTDs, and other sensors.

Analog Output: Up to 480 (internal power supply) or 2,304 (external power supply).

Digital I/O: Up to 4,608 points, supporting multiple voltage levels.

SIL General I/O Module (UIO): 16 channels, configurable as DI/DO/AI/AO, supporting 1ms SOE (event sequence recording), line monitoring, HART, and voting/verification functions.

3. Software Functions

Control Strategies: Supports PID, switch, cascade, ratio, three-step motion, etc. control loops.

Advanced Functions:

Fuzzy Overshoot Suppression: Reduces overshoot after setpoint changes or disturbances.

Carbon Potential and Dew Point Control: Specifically for atmosphere control in heat treatment furnaces.

Accutune III: Standard self-tuning function, accelerating startup speed.

Recipe and Sequencer: Supports batch processing and product switching.

Input/Output Voting: Supports 1oo2 and 2oo3 voting and output verification.

4. Operating Environment Operating System: Supports Windows 7 (32/64-bit), Windows 8, Windows 10.

Operating Temperature: 0°C to 60°C (32°F to 140°F).

Certifications: TUV SIL-2, CSA (HazLoc), FM CL1/Div2, ATEX, UL, CE, RoHS, etc.

II. Application Domains

The HC900 system is widely applied in several typical industrial fields due to its extensive compatibility and high reliability:

Chemical: Including specialty chemicals, plastics and rubber.

Life Sciences and Cosmetics: Industries requiring strict compliance and formulation management.

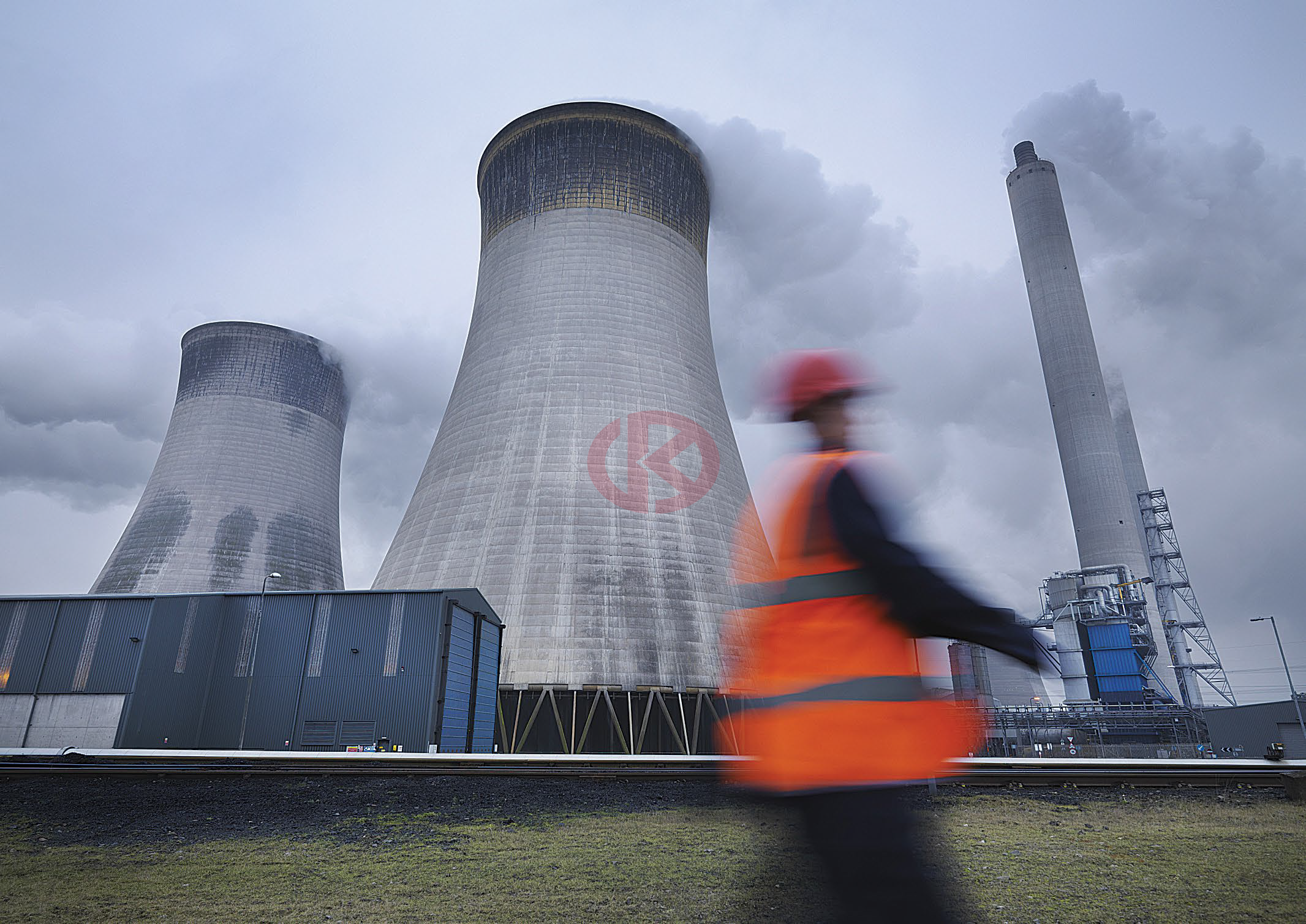

Power: Conventional power industries excluding nuclear power.

Cement and Glass: High-temperature and continuous production processes.

Pulp and Paper: Complex process control.

Mining and Metals: Monitoring and control in harsh environments.

Water and Wastewater Treatment: Municipal and industrial water treatment.

Food and Beverage: Batch production that complies with food safety standards (e.g., FDA 21 CFR Part 11).
