How do you tell GE V7768 V7769 Front Rear Panel Connectors

From:GE | author:Make | Release :2024-05-26 | 267 view: | Share:

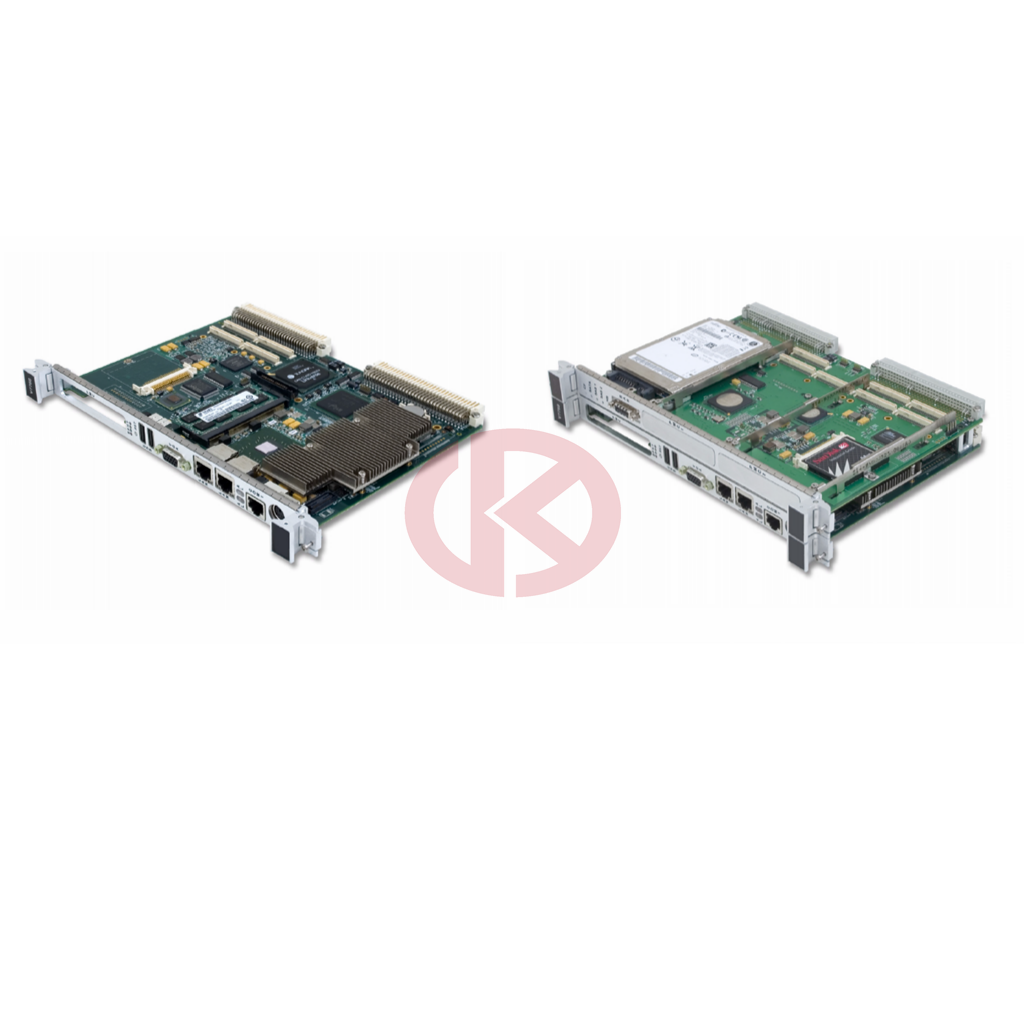

The V7768/V7769 provide front panel access for the PMC expansion site, an

optional Gigabit Ethernet port, one 10/100 RJ45 connector, one serial port, SVGA,

keyboard/mouse, the manual reset switch and the status LEDs. A drawing of the

V7768/V7769 front panels are shown in Figure 1-7 and Figure 1-8. The front panel

connectors and indicators are labeled as follows:

V7768

• USB Dual USB 2.0 Ports

• LAN1 10/100/1000 Mbit Ethernet connector for port 1

• LAN2 10/100/1000 Mbit Ethernet connector for port 2

• M/K Mouse/keyboard connector

• COM1 Serial Port

• RST Manual reset switch

• BPHT Status LEDs

• VGA Analog Video connector

• A L Activity and Link Status LEDs for rear GbE

V7769

• SATA Serial ATA Activity LED

• SAS1 SAS Lane 1

• SAS2 SAS Lane 2

• HB Heartbeat LED for SAS/SATA controller

The V7768/V7769 provide rear I/O support for the following: digital video, two

SATA ports, one Serial and four USB ports. The V7768/V7769 are compatible with

GE’s Rear Transition Modules ACC-0602RC and

ACC-0603RC.

The front panel connectors, including connector pinouts and orientation, for the

V7768/V7769 are defined in Appendix A: Connector Pinouts.
