FIREYE 45UV5 UV self-checking Scanner

For 45UV5 UV self-checking Scanner Models: 45UV5-1005, -1005CEX, 45UV5-1006, 45UV5-1007, -1007CEX, 45UV5-1009, -1009CEX and 45UV5-1105 For use only with designated

Fireye® controls For Infrared Photocell Scanners use SC103 For non self-checking UV Scanners use SC102

IMPORTANT NOTE

The information provided in this bulletin is directed to competent boiler and combustion service technicians who are experienced in the installation and operation of Fireye Flame Safety equipment.

Persons not familiar with Fireye products should contact the nearest Fireye representative or other qualified service group.

The 45UV5 scanners as well as all other Fireye scanners, are designed to be used exclusively with the appropriate Fireye Flame Safeguard and Burner Management controls.

The application of these scanners to other than Fireye equipment should be reviewed for approval by Fireye

APPLICATION

Fireye 45UV5 self-checking scanners are used to detect ultraviolet emissions from fossil fuel flames such as natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates and diesel fuels

These 45UV5 models are used only with the Flame-Monitor, BurnerLogix, D-Series, FlameWorx, MicroM and some P-Series Fireye control models to provide flame safeguard and monitoring systems for supervised manual,

semi-automatic and fully automatic single burner boilers, process ovens and heaters.

Housing Material: Cast aluminum Weight: 7 lbs. (3.2 kg)

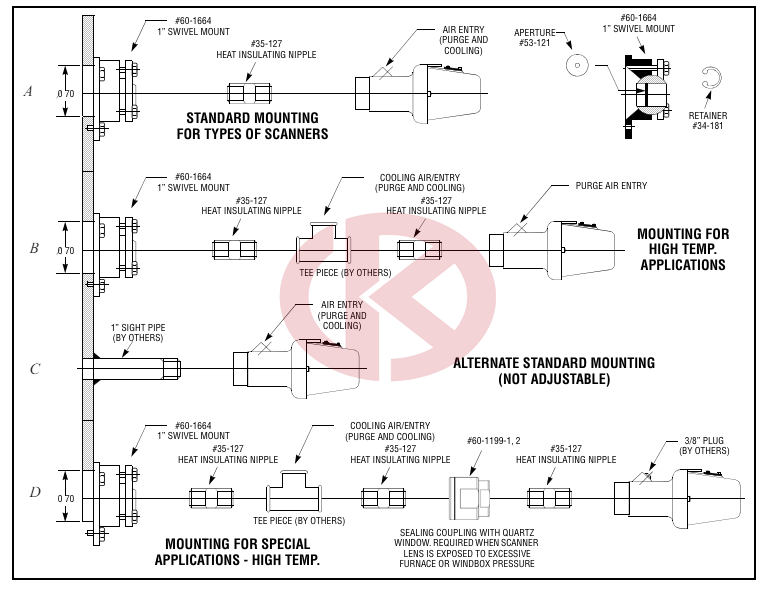

Housing Dimensions: See Fig. 1 and Fig. 2 Purge Air: 4 SCFM (113L/min) at 3/8 inch threaded housing inlet or 4 SCFM at 1 inch wye fitting in scanner sight pipe.

Temperatures near the upper limit of the scanner operating range and/or use with dirty duels may require up to 15 SCFM (425 L/min.).

Optical Range: 2200 to 2600 angstroms. No response to infrared radiation or visible light.

Optical Field of View: 1 inch per foot (25.4mm/305mm) Operating Range: 72 inches (1830mm) or less.
