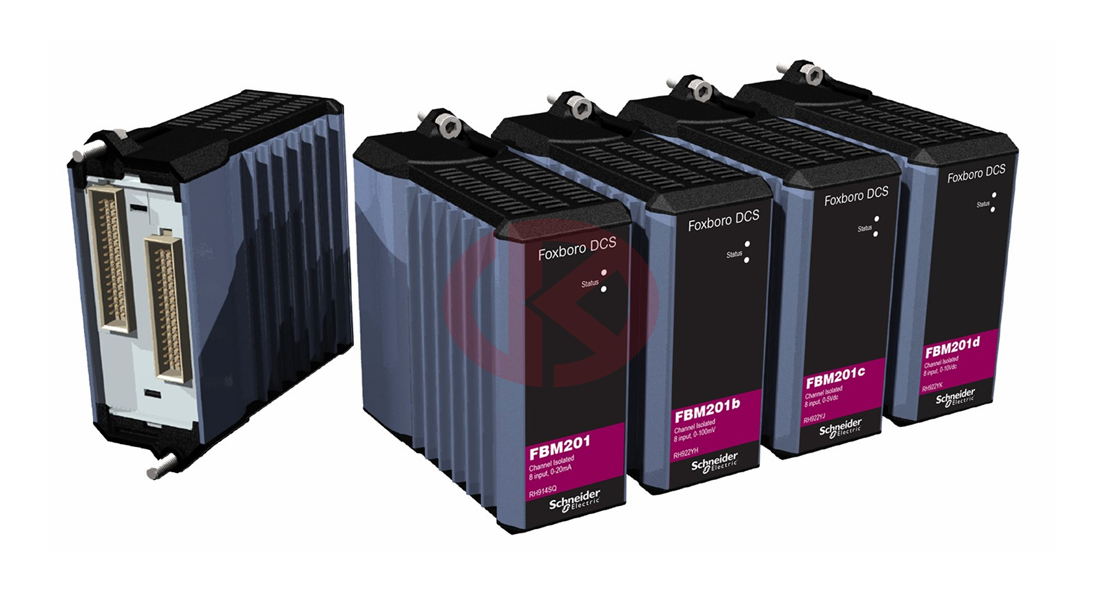

FOXBORO FBM201/b/c/d Analog Input (0 to 20 mA, 0 to 100 mV, 0 to 5 V, 0 to 10 V dc) Interface Modules

FBM201/b/c/d Analog Input (0 to 20 mA, 0 to 100 mV, 0 to 5 V, 0 to 10 V dc) Interface Modules

The Schneider Electric brand and any trademarks of Schneider Electric SE and its subsidiaries referred to in this guide are the property of Schneider Electric SE or its subsidiaries. All other brands may be trademarks of their respective owners. This guide and its content are protected under applicable copyright laws and furnished for informational use only. No part of this guide may be reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), for any purpose, without the prior written permission of Schneider Electric. Schneider Electric does not grant any right or license for commercial use of the guide or its content, except for a non-exclusive and personal license to consult it on an "as is" basis. Schneider Electric products and equipment should be installed, operated, serviced, and maintained only by qualified personnel. As standards, specifications, and designs change from time to time, information contained in this guide may be subject to change without notice. To the extent permitted by applicable law, no responsibility or liability is assumed by Schneider Electric and its subsidiaries for any errors or omissions in the informational content of this material or consequences arising out of or resulting from the use of the information contained herein.

Each FBM201/b/c/d Analog Input Module contains eight analog input channels, each channel accepting a 2–wire, dc input from an analog sensor such as a 4 to 20 mA or 0 to 5 Vtransmitter, or a self-powered 20 mA source. The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus. The FBM201is electrically compatible with standard HARTsignals. • 8channelsfor input of analog sensor signals: ◦ 0to20mAdc–FBM201 ◦ 0to100mVdc–FBM201b ◦ 0to5Vdc–FBM201c ◦ 0to10Vdc–FBM201d • Eachanalog input channel is galvanically isolated from other channels and ground • Ruggeddesignsuitable for enclosure in Class G3 (harsh) environments • Execution of an analog input application program that provides conversion time and configurable options for integration time and Rate of Change Limits • Highaccuracy achieved by sigma-delta data conversions for each channel • Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM201/b/c/d modules • TAsforperchannel internally and/or externally loop powered transmitters

FBM201:0to20mAdc FBM201b:0to100mVdc FBM201c:0to5Vdc FBM201d:0to10Vdc
