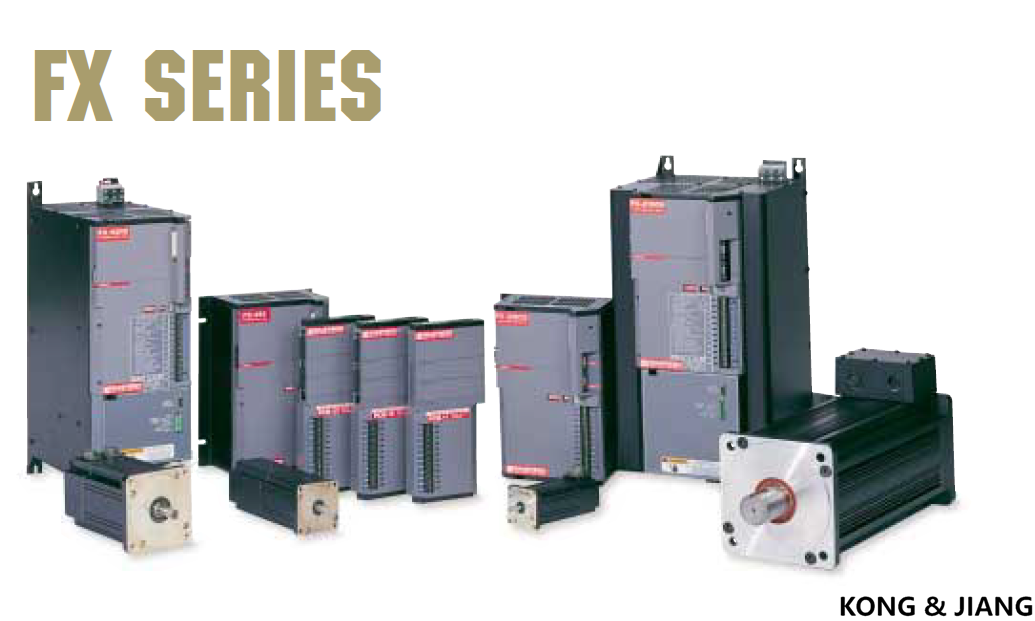

EMERSON Motion Control 230V FX Drives 316 340 455(CT)

EMERSON Motion Control 230V FX Drives  316 340 (CT)

• All digital design

• 96-264 1Ø auxiliary logic supply for 1-1000 lb-in, 96-

264 VAC 1Ø bridge power for 0-55 lb-in, 96-264 1Ø or

3Ø bridge power for 55-120 lb-in, 380-460 VAC 3Ø

power for 120-1000 lb-in

• 0-1000 lb-in continuous torque when combined with

DX Series (0-120 lb-in) and BL Series (120-1000 lb-in)

resolver feedback servo motors. IP65 and holding

brake versions available

• FX Series Amplifiers up to 120 lb-in are UL Listed and

Canadian UL Listed. CE Certified versions available

• Easily programmed with EMERSON Motion Control’s

fill-in-the-blank PCXWin or PCX for DOS software

• 8 input and 4 output lines (10 to 30 VDC) sinking or

sourcing are standard on the base FX Drive

• Operating modes: Integral positioner; analog velocity;

analog torque; pulse follower

• Application modules can be installed on the base FX

Drive to add additional I/O (8 inputs, 4 outputs),

memory (Storage for 256 sets of index parameters),

and a wide range of specialty application functionality

• Initiate programs of motion sequences of up to 100

steps total in the base FX Drive and up to 1024 steps

with the addition of an Application Module

• 93 predefined I/O functions for assignment to I/O

lines on the base FX Drive or Application Module

• Non-volatile memory allows storage of up to 32 sets of

index parameters

• Linear or modified sine motion profiles

• Scalable in user-defined units including inches, feet,

mm, etc.

• RS-232 communications interface with baud rates up

to 19.2 Kbaud for daisy chaining up to 31 FX Drives

on a single communication link

• Auxiliary logic supply provision for maintaining

critical drive information (i.e. position) through

bridge power loss

• LED display for operating and diagnostic status

• Two year extended warranty on FX Positioning Servo

Amplifiers

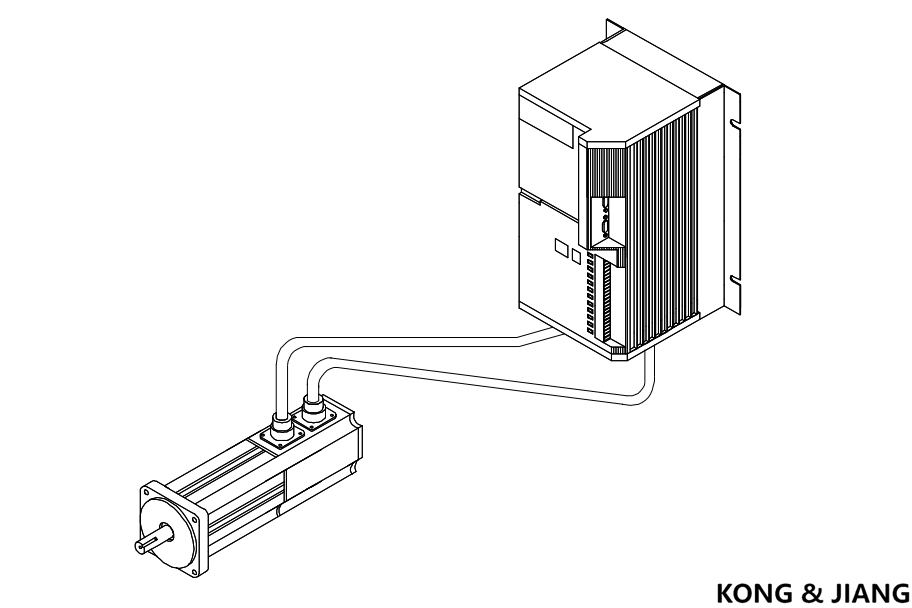

FX brushless positioning servo drives are designed to

provide trouble-free solutions for a wide variety of

industrial automation applications. Each FX Positioning

Servo Drive System integrates the position control, I/O,

feedback, servo amplifier and power supply in one housing.
