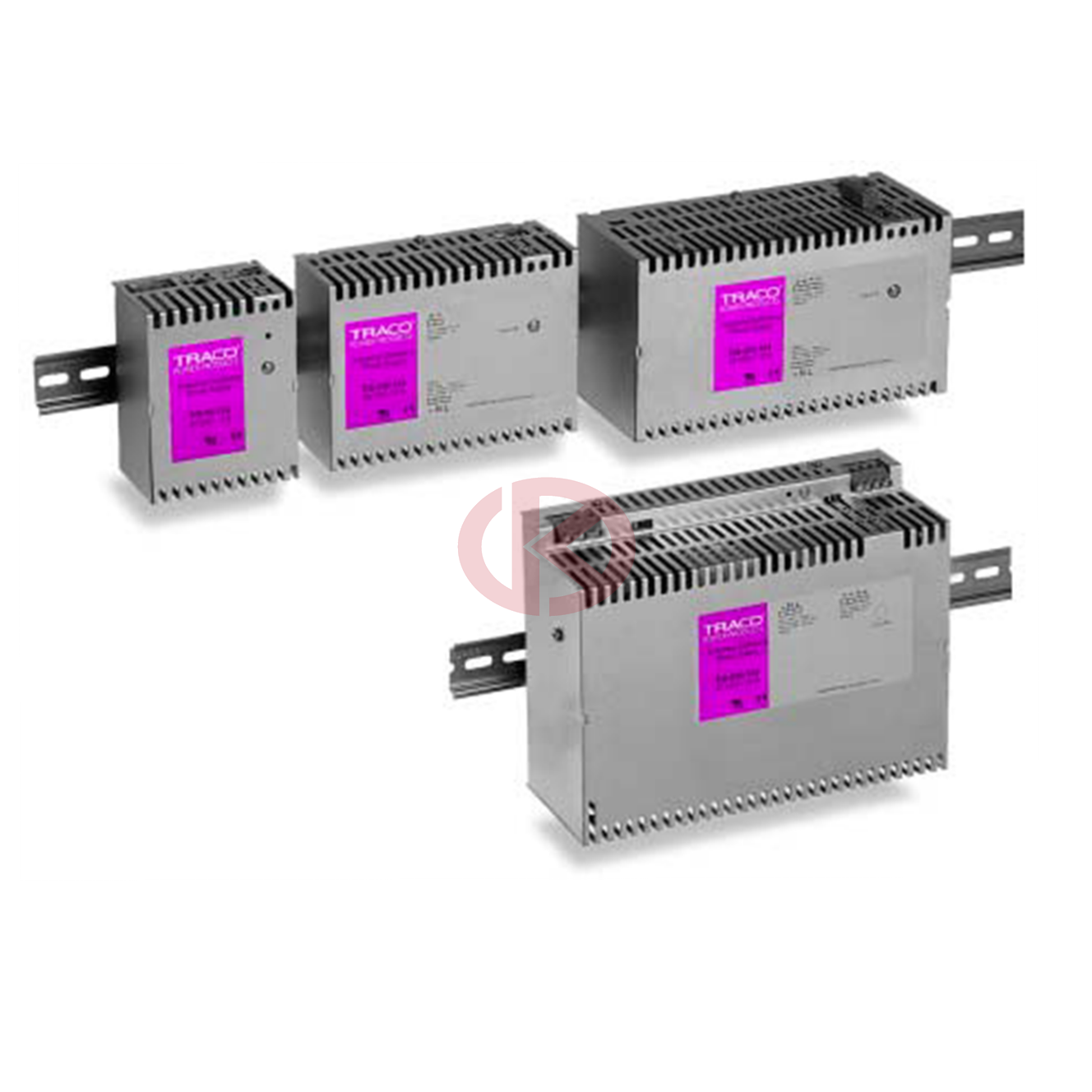

TRACO POWER Industrial Power Supplies TIS

TRACO POWER  Industrial Power Supplies TIS

Features

Switch mode power supplies for

DIN-rail mounting

4 power ranges with 3, 6, 12 and 24 A

output current (24 VDC models)

Selectable 115/ 230 VAC input

Very low ripple and noise

EMI complies with EN50081-2 and

EN50082-2

Conducted EMI to EN55011 class B

For system operation available with

built-in functions:

RED: Redundancy module for N+1

systems with true current sharing.

SIG: Signal module with AC-Powerfail,

DC- OK Signal and

external ON/OFF control

UDS: DC-UPS module for uninterruptable

battery backed-up

power systems.

Worldwide Safety Approvals

Easy snap-on mounting on DIN-rails

or chassis mounting

The switching power supplies of the TIS series have been particulary designed

for applications in industrial process control systems and machine

tools. Excellent specifications and high immunity against electrical disturbances

guarantee reliable power for sensitive loads in rugged industrial

environments. With help of optional function modules specific requirements

for system applications can be met by a standard product. With the UDS

module the power supplies can be extended to a perfect DC-UPS with automatic

battery- backup. This function is very often required in applications

where a time delayed shutdown of a system is necessary. To monitor and

control the power supply a signal module can be installed. For parallel

operation with active power sharing a redundancy option is available. This

flexibility makes the TIS series power supplies a cost effective solution for

many industrial applications.

TIS 75-112

TIS 75-124

TIS 75-148

TIS 150-124

TIS 150-148

TIS 300-124

TIS 300-148

TIS 300-172

TIS 500-124

TIS 600-124

TIS 600-128

TIS 600-148

TIS 600-172

TIS 300-124 DCI

Input voltage range – TIS 75, TIS 150, TIS 300, TIS 600 93 – 132 VAC / 187 – 264 VAC

– TIS 500 187 – 264 VAC

– TIS 300 DCI 300 – 800 VDC

Input frequency 47 – 63 Hz

Input current at full load (typ.) 115 VAC 230 VAC

– TIS 75 1.7 A 0.9 A

– TIS 150 3.0 A 1.7 A

– TIS 300 5.4 A 3.3 A

– TIS 500 5.5 A

– TIS 600 10.5 A 6.4 A

Inrush current (< 2 ms) 115 VAC 230 VAC

– TIS 75 < 16.5 A < 33 A

– TIS 150 < 35 A < 70 A

– TIS 300 < 35 A < 70 A

– TIS 500 < 70 A

– TIS 600 < 70 A < 80 A

Output voltage adj. range – 12 VDC models 12 – 14 VDC

– 24 VDC models 24 – 28 VDC

– 28 VDC models 28 – 32 VDC

– 48 VDC models 48 – 52 VDC (48 – 55 VDC on request))

– 72 VDC models 60 – 76 VDC

Regulation – Input variation ± 0.2 % max.

– Load variation (10 – 90%) – TIS 75, TIS 150 ± 1.0 % max.

– TIS 300, TIS 500, TIS 600 ± 0.3 % max.

(± 1.5 % in parallel operation)

Ripple and Noise (20MHz Bandwidth) < 50 mV pk-pk

Electronic short circuit protection current limitation at 110 % typ.

(constant current, automatic restart)

Overvoltage protection, triggerpoint at 140 % typ. Vout nom.

Hold-up time 115 VAC 230 VAC

– TIS 75 ... TIS 300 min. 25 ms min. 30 ms

– TIS 500 min. 40 ms

– TIS 600 min. 15 ms min. 25 ms

TIS 150-124 RED 115 / 230 VAC 150 W 24 VDC 6.0 A

TIS 150-148 RED selectable 18 VDC 12 A

TIS 300-124 RED 115 / 230 VAC 300 W 24 VDC 12 A

TIS 300-148 RED selectable 48 VDC 6.0 A

TIS 600-124 RED 115 / 230 VAC 600 W 24 VDC 24 A

TIS 600-148 RED selectable 48 VDC 12 A
