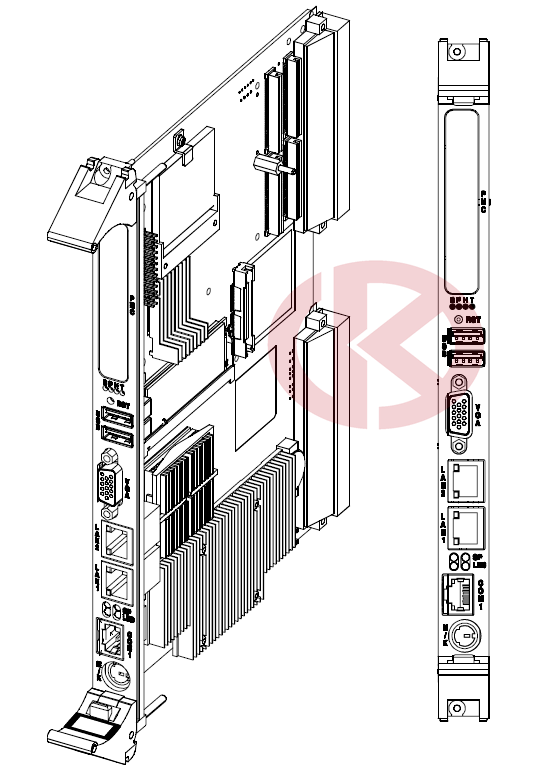

GE V7768/V7769 VME Single Board Computer

GE  V7768/V7769 VME Single Board Computer

• Up to 2.0 GByte DDR2 SDRAM (One SODIMM)

• SVGA port (front I/O)

• Dual Gigabit Ethernet (GbE) (front I/O)

• One RS232/422 COM port (front I/O)

• One RS232/422 COM support (rear I/O)

• Two USB 2.0 ports (front I/O)

• Four USB 2.0 support (rear I/O)

• Supports two SATA connections (rear I/O)

• One 2.5-in. SATA hard drive (optional for V7769 only)

• Dual SAS connector (front I/O on V7769 only)

• Real-Time clock/calendar

• Front panel reset switch

• PS/2 Keyboard/Mouse connection (front I/O)

• Onboard parallel connector

The 945GM chipset allows the V7768/V7769 to be capable of executing many of

today’s desktop operating systems such as Microsoft®’s Windows® XP, Windows

Vista®, Linux® 2.6.x, and VxWorks® 6.x.

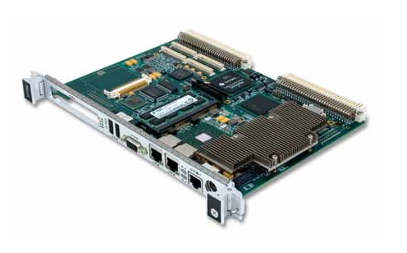

The V7768 is a VMEbus single board computer from Abaco Systems, offering up to 2.16 GHz of processing speed via the Intel Core 2 Duo processor with up to 2 Gbyte DDR2 SDRAM. This board integrates the Intel 945GME Express Chipset and offers a very rich I/O set, making this a very flexible addition to our expansive line of Intel architecture VME SBCs. I/O options include dual Gigabit Ethernet, two SATA interfaces, four USB 2.0 ports, keyboard/mouse/SVGA on the front panel, as well as a PCI-X capable

PMC site. The V7768 also offers a Celeron® M processor option that allows for 20 more degrees on the upper operating temperature limit. The V7768 provides further customer defined I/O capabilities with the board-toboard connector for the PMC237CM1/V PMC expansion board from Abaco Systems, which gives customers three additional PMC expansion sites in addition to the PCI-X PMC site on the V7768.

Serial Ports • Two 16550 compatible serial ports via DB-9 connectors: COM1 routed to front panel, COM2 routed to P2 • Ports feature independent 16-byte FIFO supporting baud rates up to 115 Kbaud PMC Extension Slot • One 133 MHz PCI-X PMC site • 46-pin P2 user I/O per VITA35, P4V2-46dz • Add 3x 32-bit/33 MHz PMC sites with the PMC237CM1/V Front Panel Options • VME Standard • 1101.10 front panel Programmable Timers • Two 16-bit timers and two 32-bit timers • Mapped in PCI memory space • Completely software programmable and can generate PCI bus interrupts Watchdog Timer • Programmable Intervals • Interrupt and board reset triggers Nonvolatile SRAM • 32 Kbyte of nonvolatile SRAM Dimensions • 6U (4HP) single slot Eurocard form factor • Height: 9.2 in. (233.4mm) • Depth: 6.3 in. (160mm) • Thickness: 0.8 in. (20.3mm) Power Requirements • +5 VDC (±5/-2.5 percent), C2D: 6A (typical), 7.6A (maximum); Celeron M: 4A (typical) to 4.6A (maximum) • +12 VDC (±5 percent), less than 1mA • -12 VDC (±5 percent, less than 1mA Note: VME Interface only allows lower voltage of -4.875 Note: Does not include PMC site for power requirements Airflow • Forced air cooling required • 400 LFM minimum, measured at the outlet of the heat sink Temperature • Operating: 0 to +70°C (Intel Celeron M) • 0 to +55°C (Intel Core 2 Duo) • Storage: -40 to +80°C Altitude • Operating: 0 - 10,000 ft (3,000m) • Storage: 0 - 40,000 ft (12,000m) Humidity • Operating: Relative humidity 5% to 95%, noncondensing • Storage: Relative humidity 5% to 95%, noncondensing MTBF • Contact factory
