ABB DCV 700 DC drive systems

The DCV 700 series is a complete range of DC converters intended for the

supply and control of DC machines, in stand-alone or multi-drive systems

with high performance and reliability specifications.

DCV 700 converters are fully digital and mounted

in an enclosure complete with all necessary

equipment, meeting the most stringent safety

standards. The converter can be used for standard

applications but has the flexibility to be

customized for the most demanding applications.

The I/O connections of the DCV 700

are in the Application Controller

(APC) and in the Digital Drive

Controller (DDC).

The Application Controller APC includes:

• 4 digital inputs

• 2 digital outputs

• 2 analogue inputs

• 1 voltage reference output

The I/O connections in the Drive Controller DDC

are used for safety and other drive specific

functions like emergency stop and motor temperature

measurement:

• 3 digital inputs

• 4 digital outputs

• 5 analogue inputs

• 2 analogue outputs

• 1 pulse encoder input

• 1 emergency stop input

• 1 emergency stop output

• 1 current source

• 1 voltage reference output

• 1 actual armature current output

Optional I/O boards are available

to provide tailored solutions for the

most demanding applications.

The quantity of I/Os can be increased by using

extended I/O board and speed measurement

board.

Extended / Remote I/O Board YPQ110A

Connection to the APC can either be through

parallel bus (extended) or through low speed

serial bus (remote).

• 8 digital inputs

• 8 digital outputs

• 4 analogue inputs

• 2 analogue outputs

• 3 voltage reference outputs

Speed Measurement Board YPH107A

The board can be used for accurate speed and

position measurement. Connection to the APC is

through the parallel bus. For positioning there is

a 32 bit hardware counter.

• 1 digital input for synchronisation

• 1 pulse encoder input

• 2 analogue outputs

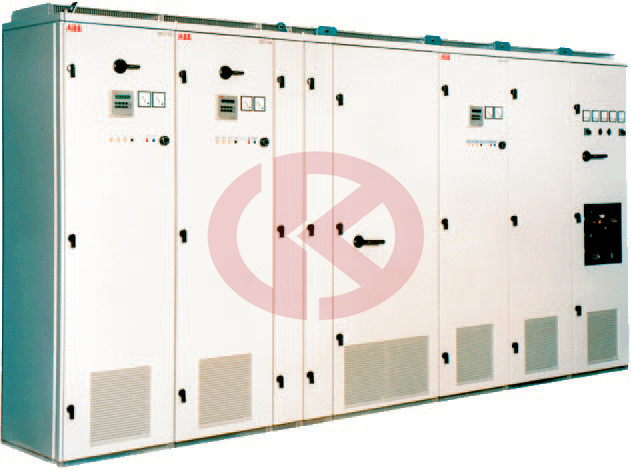

6-/ and 12-pulse DC drive systems in Drive-MNS-cabinets 22 to 5150/10300 A 10 to 4900/9400 kW

The DCV 700 series is a complete range of DC converters intended for the supply and control of DC machines, in stand-alone or multi-drive systems with high performance and reliability specifications.

DCV 700 converters are fully digital and mounted in an enclosure complete with all necessary equipment, meeting the most stringent safety standards. The converter can be used for standard

applications but has the flexibility to be customized for the most demanding applications

Dcv 700-0025-45-D

Dcv 700-0050-45-D

Dcv 700-0075-45-D

Dcv 700-0140-45-D

Dcv 700-0250-45-D

Dcv 7o0-0350-45-D

Dcv 700-0520-45-D

Dcv 700-0700-45-D

Dcv 700-0900-45-D

Dcv 700-1200-45-D

Dcv 700-1200T-45-D

Dcv 7o0-1500-45-D

Dcv 7o0-2000-45-D

Dcv 700-2500-45-D

Dcv 7o0-3300-45-D

Dcv 7o0-4000-45-D*

Dcv 700-5150-45-D*500 v

Dcv 7o0-0025-55-D

Dcv 7o0-0050-55-D

Dcv 7o0-0075-55-D

Dcv 7o0-0140-55-D

Dcv 7o0-0250-55-D

Dcv 700-0350-55-D

Dcv 700-0520-55-D

Dcv 7oo-0700-55-D

Dcv 7o0-0900-55-D

Dcv 700-1200-55-D

Dcv 700-1200T-55-D

Dcv 700-1500-55-D

Dcv 700-2000-55-D

Dcv 7o0-2500-5s-D

Dcv 7o0-3300-55-D

Dcv 700-4000-55-D*

Dcv 700-5150-55-D*

Dcv 700-0050-65-D

Dcv 700-0110-65-D

Dcv 7o0-0270-65-D

Dcv 700-0450-65-D

Dcv 7oo-o900-65-D

Dcv 700-1500-65-D

Dcv 700-2050-65-D

Dcv 7o0-2500-65-D

Dcv 7o0-3300-65-D

Dcv 700-4000-65-D*

Dcv 700-4750-65-D*

Dcv 7o0-o900-75-D

Dcv 700-1500-75-D

Dcv 700-2050-75-D

Dcv 700-2500-75-D

Dcv 700-3300-75-D

Dcv 700-4000-75-D

Dcv 700-4750-75-D*
