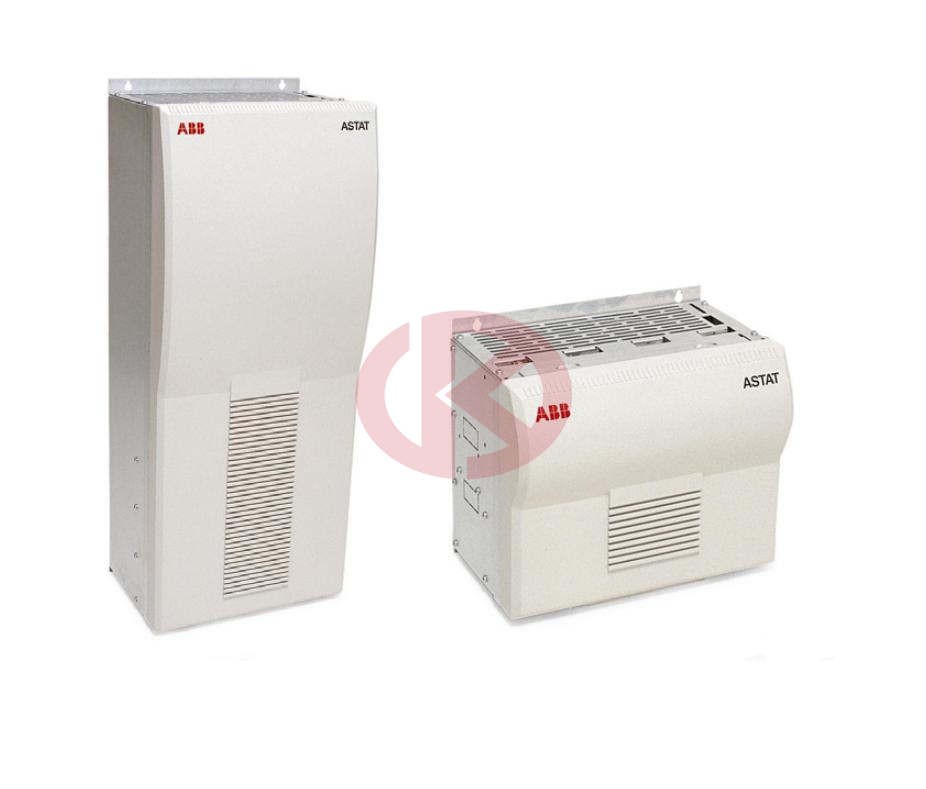

ABB ASTAT® Product Overview

ABB ASTAT® Product Overview   Industry Applications   ASTAT® is a digital motion control system designed for heavy-duty industrial cranes, widely used in:   1. Steel Industry：Operates in high-temperature environments (e.g., steel plants in tropical regions like India) without requiring additional cooling systems.   2. Ports & Logistics：Enables high-precision cargo handling (control precision of 1 cm), improving loading/unloading efficiency.   3. Mining & Heavy Manufacturing：Adapts to harsh conditions (dust, poor power quality) with integrated brake control, thermal relays, and robust hardware.   4. Retrofit Projects：Replaces legacy drive systems in mature markets (e.g., Europe) to meet modern operational demands.   --- Key Specifications   1. Electrical Parameters     - Voltage Range：380-690 V AC (supports 50/60 Hz ±10 Hz).     - Current Capacity：25-2000 A (continuous AC-1 current exceeding rated values), up to 4700 kVA applications.     - Temperature Range：-25°C to +70°C (no auxiliary cooling/heating).   2. Hardware Modules     - Control Module (DARA 1001)：Dual thyristor modules (max 2000 A), 17 digital inputs, 8 relay outputs, RS232/opto-coupled interfaces.     - Remote I/O Module (DAPM 100)：Supports 24 V DC signals, analog I/O.     - Feedback Module (DADT 1)：Monitors rotor voltage (max 600 V).   3. Integrated Features     - Built-in brake control, logic programming, time relays, and fault diagnostics.     - Speed feedback via slip-ring motors, eliminating the need for external encoders.   --- Usage Guidelines   1. Installation & Configuration     - Hardware Setup：Modular design allows rapid deployment; control cabinet connects directly to motor rotors and power systems.     - Software Setup：Configure parameters, monitor signals, and adjust motion curves via PC tools (RS232 interface).   2. Operational Modes     - Manual Mode：Precise start/stop and speed adjustment via control panels (single-movement load handling).     - Automatic Mode：Preprogrammed acceleration/deceleration curves minimize mechanical stress and rope wear.   3. Maintenance & Diagnostics     - Real-Time Monitoring：Tracks motor temperature (PTC inputs), load current, and fault signals.     - Remote Diagnostics：Ground-level software reduces the need for physical crane inspections.   --- Core Advantages   - High Reliability：Complies with EN60664 Pollution Degree 4, suitable for extreme environments.   - Cost Efficiency：Reduces contactor wear and maintenance frequency (slip-ring motor brushes last 5-10 years).   - Smart Optimization：Signal Log Tool enhances control strategies, maximizing crane performance.   For full technical documentation or customized solutions, refer to ABB’s official manuals.   --- -Translated based on the original content and technical specifications from ABB’s ASTAT® documentation.*
