ABB ACV700 Frequency Converters Discontinued spare parts

ABB ACV 700 Frequency Converters Discontinued spare parts

This manual describes the ACV 700 drive system to the application

engineers and other persons involved with ACV 700.

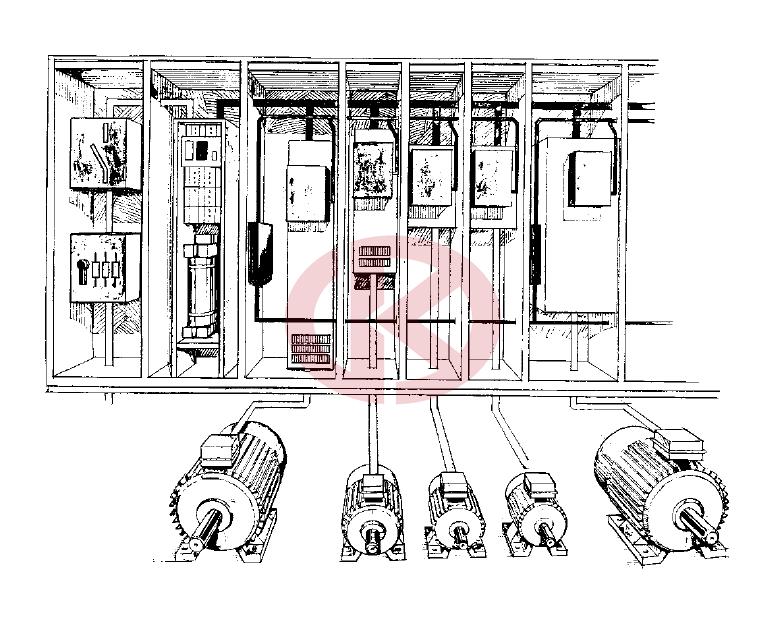

The drive has a multidrive configuration. It consists of a supply

section including connection devices (main fuses and main contactor

or circuit breaker), rectifier devices (a diode or thyristor bridge),

capacitors for smoothing of the DC voltage, optional devices, if

specified, and a number of drive sections.

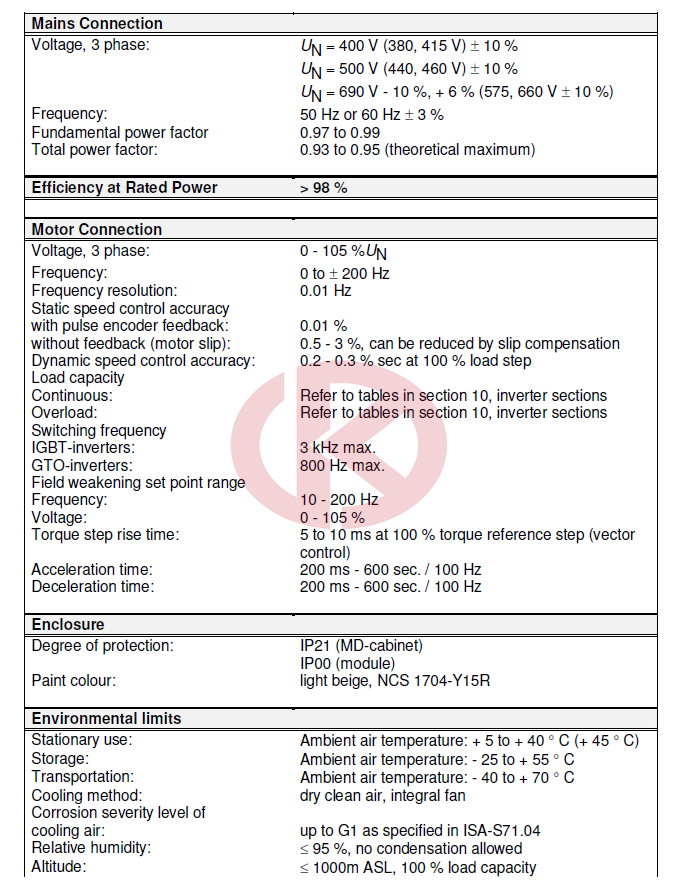

The power range for the supply sections is 40 - 2500 kVA and the

power range for the drive sections is 9 - 2500 kVA.

Depending on the required power and voltage, the drive sections are

based on either an IGBT or GTO thyristor power stage.

The control system is implemented by using the Common Drive

Control, CDC, and the Digital Drive Control, DDC. The basic part of

the CDC is the Application Controller, the APC.

The APC is designed to give a flexible, compact and efficient system

for controlling AC or DC drives. The APC is programmable by using

function blocks.

The DDC performs the inverter control functions.

Programming can be done using two alternative tools, the Function

Chart Editor, FCE or the AdvaBuild for Windows, the Drives version.

Various drive configurations are possible using one or multiple APCs

and their communication capabilities.

In small systems one APC is connected to up to four Digital Drive

Controllers (DDC). The drive configuration can be used in master/

follower applications when the master drive is of moderate complexity

and the followers fairly simple. A consequence of multiplexing is that

the performance of the drive controller interface decrease

YPP 110A Application Controller APC

SNAT 602 TAC Terminal block board

APC 700 PAN Door panel for the APC

APC 700 PPW Power supply board for door panel

YPC 111A Optic distributor board (TC link)

YPQ 110A Extended I/O board

YPH 107A Speed measurement board

YPH 108B (4 different) Speed measurement board

DSTC 454 MFB Modem

DSTC 404 Short Distance Bus active termination board

DSTC 406 Short Distance Bus passive termination board

SNAT 605 SDB Optic distributor board MFB

CI626 Bus administrator

YPC 111B Optic distributor board (MFB)

YPK 112A MB90 communication board

YPK 113A UART communication board

YPK 114A MFB communication board

YPK 117A ModBus communication board

YPK 118A ProfiBus-DP communication board

SNAT 606 CMT PC board for DDCTool

YPC 115A Optic distributor board DDCTool

YPQ 111A Extended I/O board

YPT 111A Extended I/O board

YPT 111B Extended I/O board

SNAT 603 CNT

SNAT 6O9 TAI

SNAT 607 MCI

SNAT XXXX-VB SCL

SAFT 112 POW

SAFT 113 POW

SNAT 630 PAC

SNAT 631 PAC

SNAT 632 PAC

SNAT 633 PAC

SNAT 634 PACC

SNAT 617 CHC

SNAT 620 PCB

SNAT 602 TAC

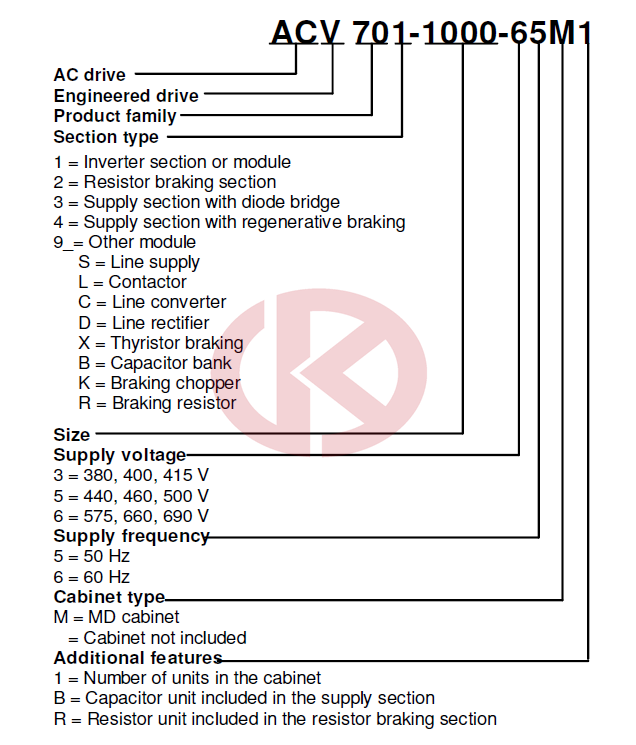

400V(380,415V)

ACV 703-0040-3-M

ACV 703-0063-3-M

ACV 703-0100-3-M

ACV 703-0160-3-M

ACV 703-0250-3-M

ACV 703-0400-3-M

ACV 703-0630-3-M

ACV 703-1000-3-M

ACV 703-1600-3-M

ACV 703-0630-3-MB

ACV 703-1000-3-MB

ACV 703-1600-3-MB

500 V(440,460V)

ACV 703-0050-5-M

ACV 703-0080-5-M

ACV 703-0125-5-M

ACV 703-0200-5-M

ACV 703-0315-5-M

ACV 703-0500-5-M

ACV 703-0800-5-M

ACV 703-1250-5-M

ACV 703-2000-5-M

ACV 703-0500-5-MB

ACV 703-0800-5-MB

ACV 703-1250-5-MB

ACV 703-2000-5-MB

690 V(575,660V)

ACV 703-0160-6-MB

ACV 703-0250-6-MB

ACV 703-0400-6-MB

ACV 703-0630-6-MB

ACV 703-1000-6-MB

ACV 703-1600-6-MB

ACV 703-2500-6-MB
