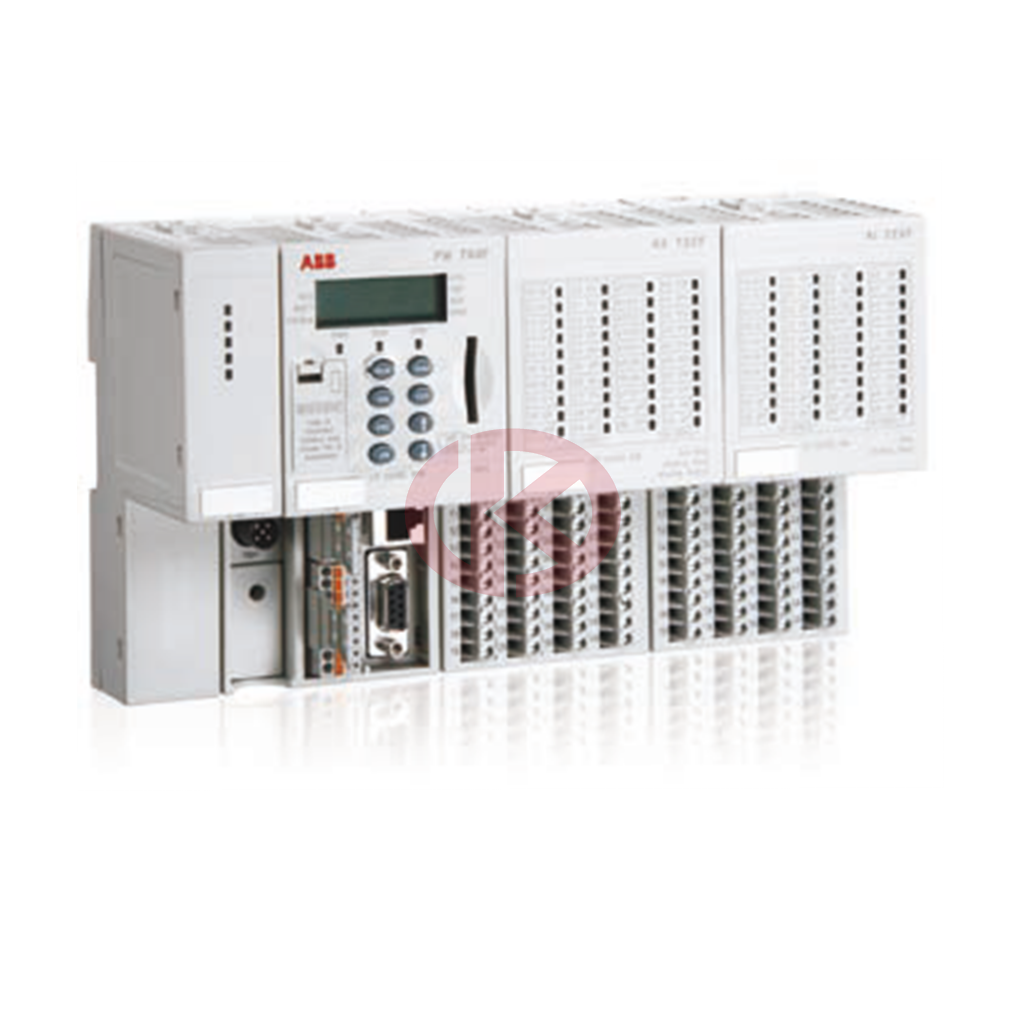

The AC 700F controller increases the scalability of the

compact control system Freelance 800F towards very

small applications with only a few I/Os and closes the

gap between PLCs (programmable logic controllers)

and complex process control systems. It is suitable

for smallest applications with about 10 to 250 I/Os per

controller and thus opens up additional application areas

for the Freelance 800F control system, which is suitable

for both small and also medium-sized projects with several

thousand signals. Comfortable, advanced functions

of control systems are now also available for very small

applications – and all at a very reasonable price. The

AC 700F controller offers a large number of advantages

compared to a standard PLC with visualization from thirdparty

vendors. The projects on the following pages show

these advantages and the various application areas for

the AC 700F controller.

Thanks to the compact control system Freelance 800F and its

AC 700F controller it is now possible for smaller automation

solutions, which to date have been dominated by PLCs, to

benefit from the advantages of process control systems,

particularly in the process industry. There is a wide range of

use in many industries including chemicals, petrochemicals,

oil and gas, metals, cement production, glass production, etc.

The AC 700F controller can be integrated into existing Freelance

800F systems in the same way as the AC 800F controller.

In contrast to PLCs, the AC 700F controller offers all of the

advantages of the compact control system. Important for

engineering and maintenance: A single engineering tool for

all tasks: Control Builder F.

DigiVis, the visualization tool, makes operation easy, structured

and intuitive. Pre-engineered components such as faceplates,

module diagnostics, event lists, the alarm line, trend displays

and automatically generated SFC (Sequential Function Chart)

displays play a key role in this regard. The use of predefined,

field proven libraries including faceplates significantly eases

the transparency, readability and adaptability of the application

and substantially increases security. The advanced diagnostic

options and improved alarm handling allows cost cutting in

the operation and maintenance phase and asset availability

can be enhanced. This substantially increases the economic

efficiency of the entire plant.

AlzChem GmbH in Trostberg, a subsidiary of Evonik Industries

AG, produces specialty chemicals products with a wide range

of uses. These chemicals are used, for example, in the production

of crop protection products, pigments, dyes, pharmaceuticals

and polymers.

In the past, an inverted filter centrifuge in a system for extracting

natural substances was PLC-controlled at AlzChem GmbH.

The program code for the PLC, a standard program from the

manufacturer, was not transparent and needed specialists to

make changes. The program was not intuitive and diagnostic

analyses were only available to a very limited extent. In order

to simplify programming and to optimize the process control,

AlzChem thus decided to use the AC 700F controller. This replaced

the PLC and was integrated into the existing Freelance

800F system without any problems.

This offers several advantages for AlzChem: The use of one

single engineering tool to configure the entire system simplifies

engineering and saves a significant amount of time during

commissioning. After transferring the program the system is

easy to understand and maintenance is simpler.

During the operating and maintenance phase, the wide range

of diagnostic options (sequence control-, hardware -, interlock

diagnostics), the intuitive graphical user interface and mature

alarm and report management allow costs to be cut. This

reduces downtime of the application and cuts maintenance

expenditures. All this improves the efficiency of the entire

system and the slightly higher acquisition costs compared to

a PLC amortize within a very short time.

Hartmut Rohner, Head of Electrical Systems, Instrumentation

and Control at AlzChem, is particularly impressed by the simple

and clear handling of the AC 700F controller and the Freelance
