Honeywell PlantCruise by Experion Specification Series 8 I/O
来源:Honeywell | 作者:kongjiang | 发布时间 :2023-11-17 | 490 次浏览: | Share:
Honeywell PlantCruise by Experion Specification Series 8 I/O

Honeywell  PlantCruise by Experion Specification Series 8 I/O

PlantCruise by Experion System

As a member of Honeywell’s Experion family, PlantCruise by Experion is specifically designed to meet the customer needs in emerging markets, through integrating state-of-the-art technology from the award-winning Experion Process Knowledge System (PKS) with innovative design of Series 8 I/O modules and cabinets, validated wider range of COTS options, easier engineering and maintenance capabilities, and integrator-friendly programs and tools. PlantCruise is the perfect platform for process, asset and business management with small to medium complexity, and enables customers to increase their profitability and productivity and accessibility to local support without sacrificing quality and reliability in an increasingly competitive environment.

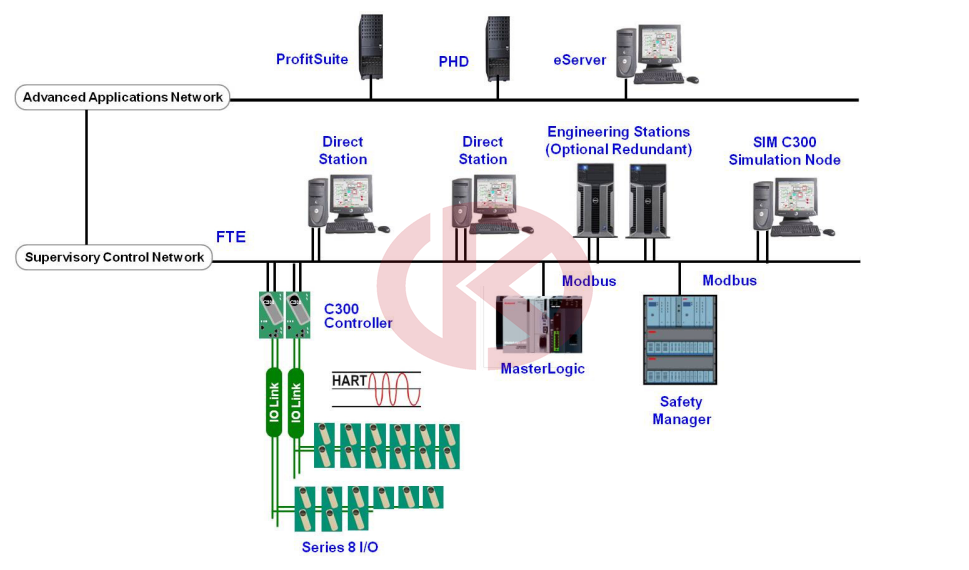

rchitecture Overview

The PlantCruise platform comprises many different integrated hardware and software solutions depending upon the needs of the application. This pictured architecture is a representation of many of the possible nodes that can be used in the PlantCruise architecture. Note that the architecture is highly scalable and not all nodes are necessary or required.

PlantCruise Series 8 I/O Overview

This document provides technical information to configure the PlantCruise Series 8 I/O and the C300 Controller, released with PlantCruise. The following Series 8 I/O items are included in this document. • Digital Input Sequence of Events • Digital Input • Digital Output • Analog Input with HART • Analog Input • Analog Output with HART • Analog Output • Low Level Multiplexer – RTD & TC

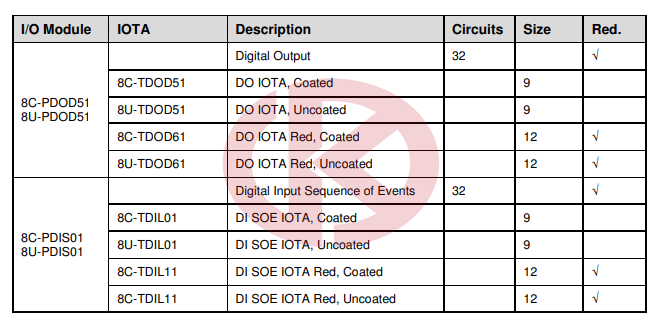

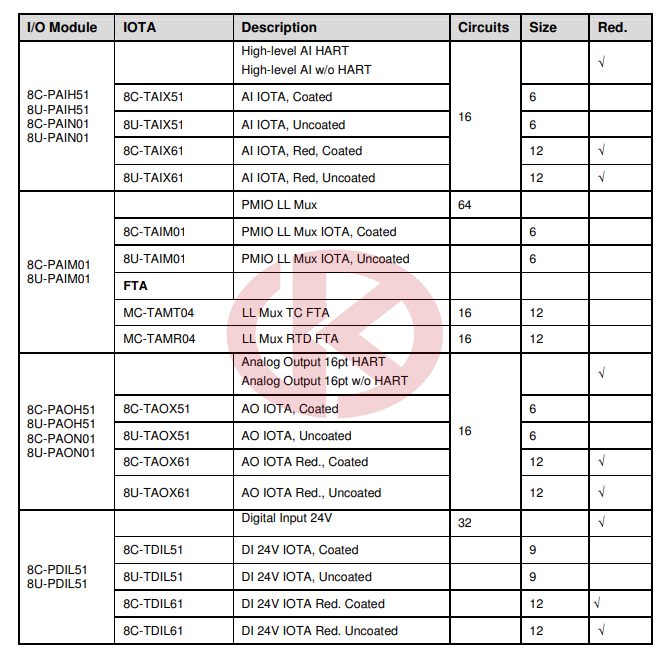

I/O Module Sizes

IOTA Sizing is nominal (6in = 152mm, 9in =228mm, 12in =304mm). I/O modules are associated with their respective IOTAs in the table below. The I/O Module is supported by one or more IOTAs.
