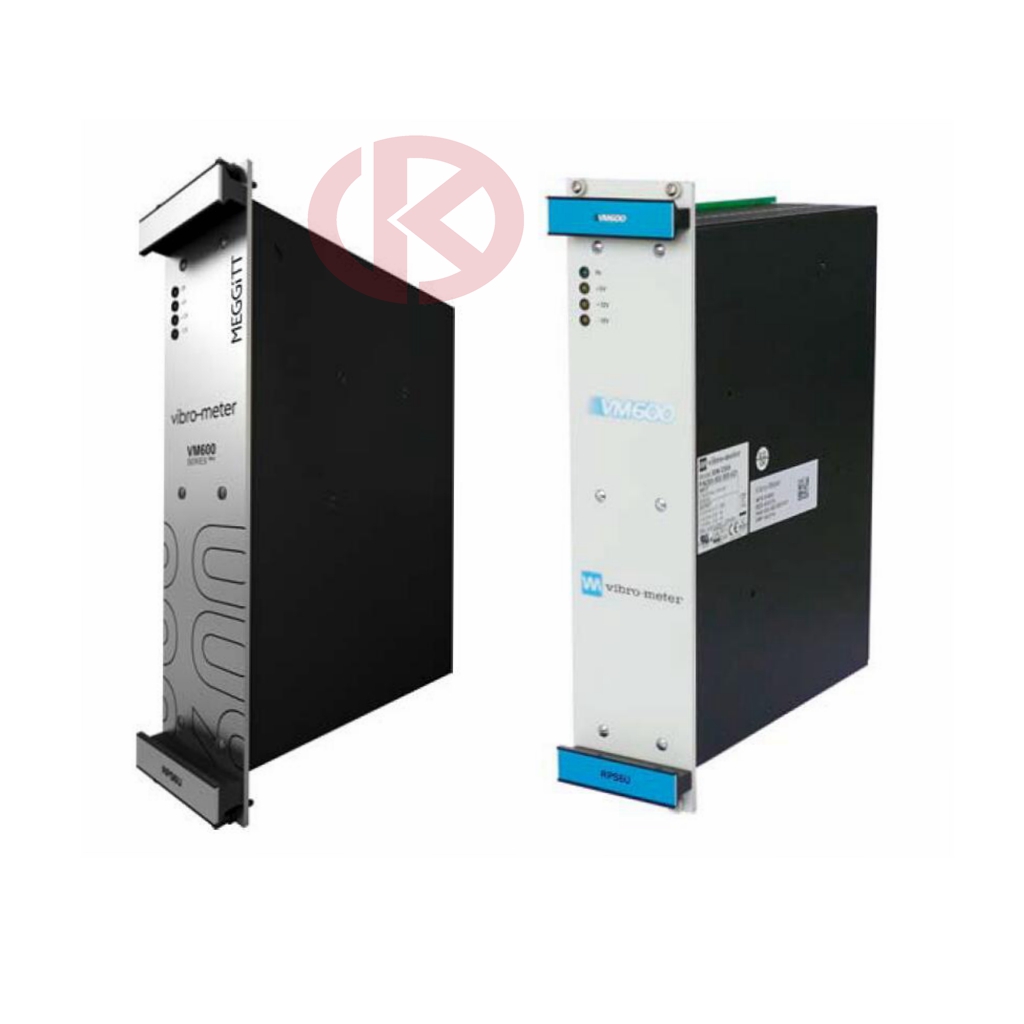

MEGGitt RPS6U Rack power supply unit

MEGGitt RPS6U  Rack power supply unit

FEATURES

» From the Vibro-Meter ® product line

» Power supply unit for VM600 system rack (6U)

» High performance

» Wide input voltage range

» Over-voltage protection

» Continuous short-circuit proof

» Minimal derating within the operating

temperature range

» 6U height

» Compact design

» Fully VME compatible

» Conforms to EC standards for EMC

» Up to two RPS6U rack power supply units can be

installed in a VM600 system rack (ABE04x)

Power supply

Input

Input voltage range (Vi nom.)

:

See Ordering information on page 12

Mains frequency variations

:

See Ordering information on page 12

Efficiency

:

See Ordering information on page 12

Output

Nominal output (Vo nom. / Io max.)

•DC output 1

:

+5 VDC / +35 A

•DC output 2

:

+12 VDC / +6 A

•DC output 3

:

−12 VDC / −2 A

Stability of output voltage Uo under full load conditions

:

≤ ±0.2%

Ripple (bandwidth 20 MHz)

:

≤ 50 mVpp

Output current limitation

:

35 A (electronic current limiter)

Output overvoltage protection

:

5.9 to 6.7 V (factory set)

Power derating

:

1%/°C from 60 to 70°C

Power

Rated power

:

300 W

Rated supply voltage

:

See Ordering information on page 12

Environmental

According to IEC 60068-2 recommendations

Operating temperature range

:

−25 to +65°C (−13 to +149°F)

Storage temperature range

:

−40 to +85°C (−40 to +185°F)

Humidity

:

≤ 95% non-condensing

Vibration

:

10 to 2000 Hz, 5 g, 2 h in each direction

Shock

:

100 g, 6 ms, half-sine pulse
