ABB Medium Voltage Drives ACS2000
From: | author:kongjiang | Release :2022-11-02 | 767 view: | Share:

The ACS2000 4KV has three sections, the Incoming/Control section, the Input Filter (IFU) section and the Phase Module section. This manual is divided, by frame size, into those sections showing the corresponding spare parts in each section. ABB reserves the right to change part numbers at any time. If you have difficulty identifying the part you need, please feel free to contact Technical Support.

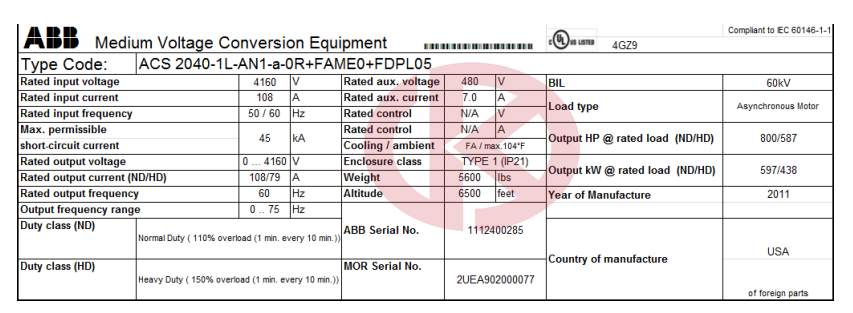

To determine the proper spare parts, refer to the serial number nameplate attached to the inner door of the input/control section

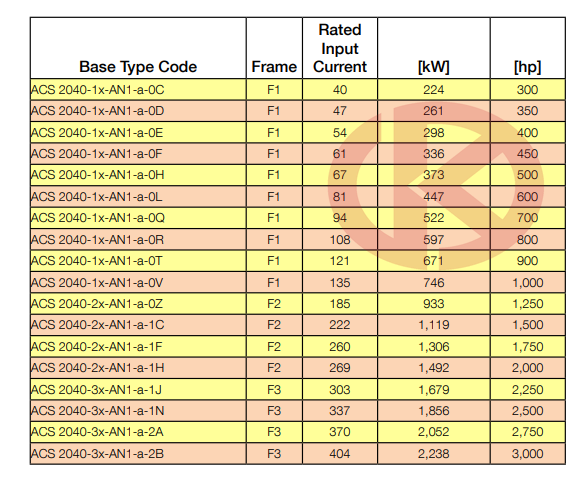

The ACS2000 is currently available in three frame sizes. Frame 1 is available beginning at 300HP and ranges up to 1000HP, while Frame 2 is available from 1250HP to 2000HP, and Frame 3 is available from 2250HP to 3000HP. The chart below shows the rated input current and kW relative to the specific horse power rating for all drives in all frame sizes.
