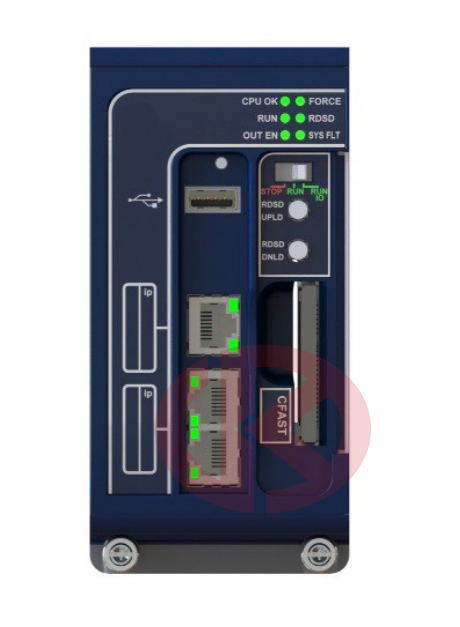

GE PACSystems RX3i CPUs IC695CPE330

GE PACSystems RX3i CPUs IC695CPE330

The PACSystems™ RX3i CPE330 is a richly featured programmable controller CPU equipped with 64Mbytes of built-in program memory and two independent high-speed Ethernet interfaces. It is ideally suited for multi-tier communications and for synchronizing large amounts of data. Its metal housing provides superior noise immunity. The CPE330 is programmed and configured over Ethernet via PAC Machine Edition™ (PME) software. It resides in the RX3i main rack and supports all RX3i I/O and Intelligent Option modules, up to 32K I/O points.

▪ Supports an updated OPC stack and certificate management ▪ Supports PME’s new GUI management interface for OPC UA configuration integration (start, stop, restart, clear, and provisioning mode)

▪ Supports the new PAC Security tool available for certificate trust management for clients and servers

▪ Supports RX3i Hot Standby Redundancy CPU with PROFINET® I/O using embedded PROFINET or using rack-mounted IC695PNC001 PROFINET Controllers. ▪ Supports RX3i Hot Standby Redundancy with Ethernet (EGD) & Genius I/O. ▪ Enabled simplex PROFINET I/O controller with support for up to 32 I/O devices and update rates of 1 – 512 ms. I/O device update rates of 8 ms

The high-performance CPU is based on the latest technology processor with fast computation and

high throughput. The controller can manage up to 32K of I/O in a number of standard languages.

The powerful CPU enables complex applications to be easily solved with the high performance

processor and up to 64 Mbytes of user memory. The RX3i supports multiple

IEC languages and

C programming to give you program flexibility. The RX3i increases machine cycle times, reduces

downtime with its extensive diagnostics and hot swap capability, and enables you to store large

amounts of data to reduce external hardware cost.

RX3I CPU (only)

with Ethernet port

Active

Controllerl

Unlversal Backplane Only.

Uses PCI Bus.

64Meg bytes

Yes

Battery Backup only

32K

32K

1CFast Ivery high speed Compactlash)

1.6GHZ Dual Core

Yes. CPU aplcation upload/download to
