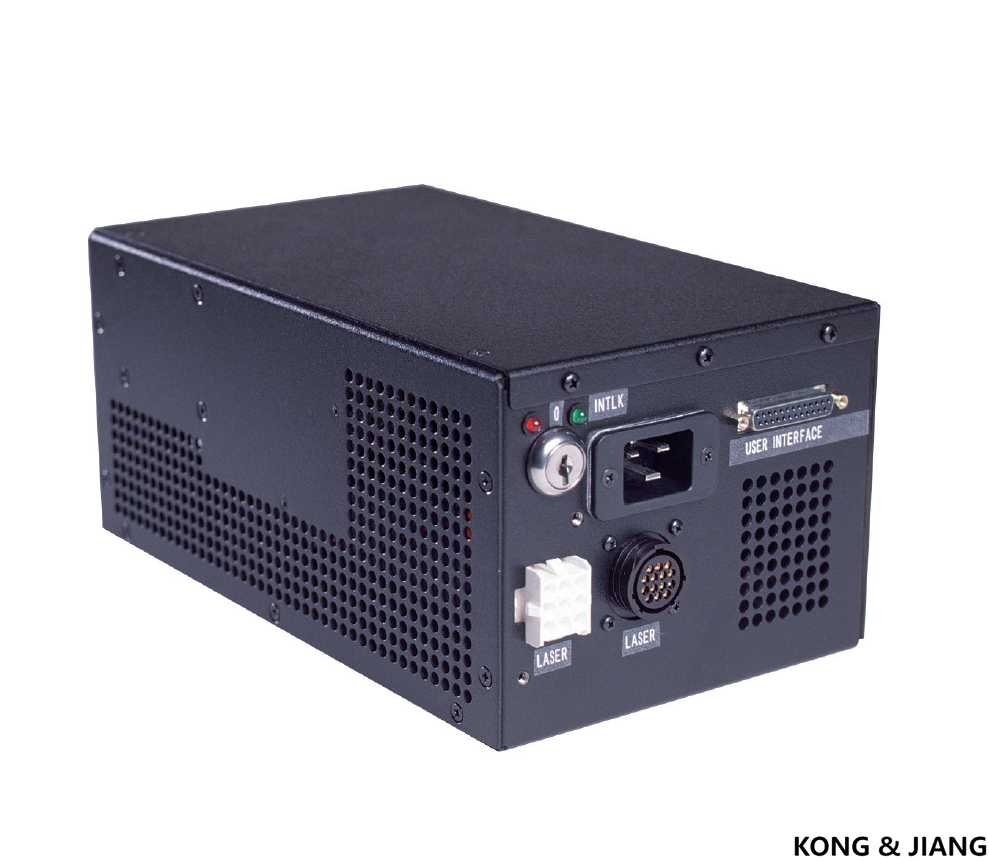

Lumentum 2110P-MLHCH Power Supplies 激光头电源

Lumentum Ultra Series power supplies accommodate all output power ranges and possible

AC input voltages. They are designed to work with standard 2211, 2214, 2218, and 2219

argon laser heads.

These highly efficient switch-mode power supplies feature

power-factor correction and universal line input capabilities.

Backward compatibility is assured through the use of standard

input/output connections.

Key Features

• Highly efficiency advanced switching technology

• Power-factor correction

• Universal line input voltage

• Ultra low noise operation

• Versatile remote interface

• Reduced size and weight

• Two-year warranty

Applications

• For use with all Model 2211, 2214, 2218, and 2219 argon

laser heads

Supported laser heads 2211/14/18/19

Input

Line voltage (±10%) 100 to 240 Vac

Input current ≤20 Amps

Input power ≤1800 VA

Mains fusing 25 Amps/250 Vdc

Power factor correction Yes

AC line cord 72” 12AWG 20A

Line cord termination Flying leads

Output

Maximum discharge current 10.25 A

Tube voltage 70 to 140 V

Standby current 3.5 to 4.5 A

Ignition delay 30±5 seconds

Auxiliary voltages ±15 V/150 mA

Interlock latching Selectable

Operating modes Power/current control

Full featured remote interface Yes

Environmental (Operating)

Temperature 4 to 40°C

Altitude <3000 m

Relative humidity (non-condensing) ≤95%

Shock, non-op. drop, transport 25 g/11 ms

Environmental (Non-operating)

Temperature -40 to 60°C

Altitude <21000 m

Relative humidity (non-condensing) ≤95%

Shock, non-op. drop, transport 25 g/11 ms

2110U-GLS  2110U-MLS 2110U-SLS 2110U-VLS
