SPEEDTRONIC™Mark VI涡轮控制

目前*先进的控制通用电气的涡轮机有超过30年的历史成功的操作。它是一套完整的发电机和机械的控制、保护和监控系统驱动燃气轮机和蒸汽轮机的应用。它是也是集成所有功能的理想平台

硬件和软件的设计与GE的涡轮设计工程密切协调和控制工程，以确保您的控制系统提供*佳的涡轮性能，你收到一个真正的“系统”解决方案。有了Mark VI，你可以使用通用电气无可比拟的先进经验汽轮机控制平台。

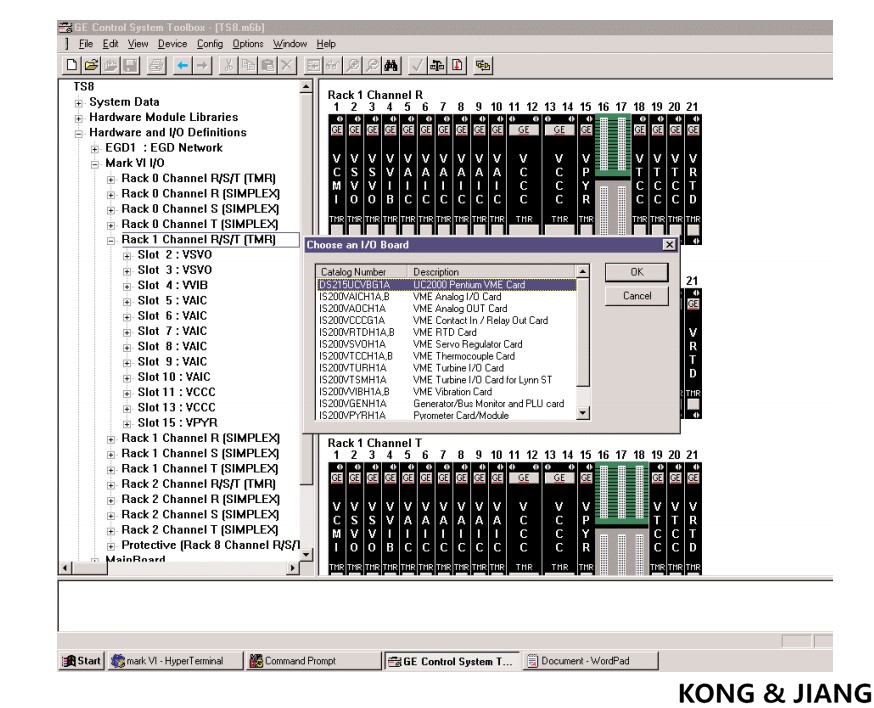

The heart of the control system is the Control Module, which is available in either a 13- or 21- slot standard VME card rack. Inputs are received by the Control Module through termination boards with either barrier or box-type terminal blocks and passive signal conditioning.

Each I/O card contains a TMS320C32 DSP processor to digitally filter the data before conversion to 32 bit IEEE-854 floating point format. The data is then placed in dual port memory that is accessible by the on-board C32 DSP on one side and the VME bus on the other.

In addition to the I/O cards, the Control Module contains an “internal” communication card, a main processor card, and sometimes a flash disk card. Each card takes one slot except for the main processor that takes two slots. Cards are manufactured with surface-mounted technology and conformal coated per IPC-CC830.

 I/O data is transmitted on the VME backplane between the I/O cards and the VCMI card located in slot 1. The VCMI is used for “internal” communications between:

■ I/O cards that are contained within its card rack

■ I/O cards that may be contained in expansion I/O racks called Interface Modules

■ I/O in backupProtection Modules

■ I/O in other Control Modules used in triple redundant control configurations

■ The main processor card
