VMIVME-7750 Intel 133MHz Front-Side Bus Pentium III Processor - VMEBus SBC
VMIC’s VMIVME-7750 is a full-featured Pentium III compatible computer in a single-slot, passively cooled, Eurocard form factor that utilizes the advanced technology of Intel’s 815E chipset running at a front-side bus rate of 133 MHz.
The VMIVME-7750 is compliant with the VME Specification Rev. C.1 and features a transparent PCI-to-VME bridge, allowing the board to function as a system controller or peripheral CPU in multi-CPU systems. The VMIVME-7750 provides features typically found on desktop systems such as:
• Up to 512MB PC133 SDRAM
• Built-in SVGA support with 4 Mbytes DRAM display cache
• Built-in dual 10/100 Mbit Ethernet
• IDE drive support
• Floppy drive support
• Two RS232 serial ports
• Dual USB ports
• Real-Time clock/calendar
• Front panel reset switch
• Miniature speaker
• Keyboard/Mouse port
The 815E chipset allows the VMIVME-7750 to provide enhanced features such as 133MHz front-side bus support and ATA-100 IDE support.
The VMIVME-7750 is capable of executing many of today’s desktop operating systems such as Microsoft’s Windows 95, Windows 98SE, Windows NT 4.0, Windows 2000 and a wide variety of Linux-based operating systems.
The standard desktop features of the VMIVME-7750 are described in Chapter 2 of this manual.
The VMIVME-7750 provides features useful to embedded applications such as:
• I2C bus support
• Remote Ethernet booting
• Up to 512 Mbytes of bootable compact flash (optional)
• Four general-purpose programmable timers (two 16-bit and two 32-bit)
• Software-selectable Watchdog Timer with reset
• 32KB Non-volatile SRAM

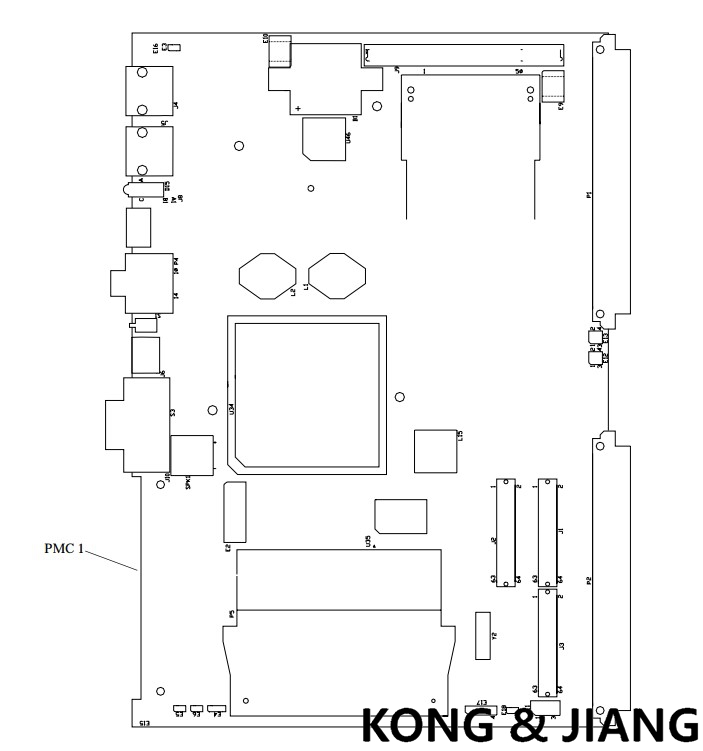

Additionally, the VMIVME-7750 offers a PMC expansion site with front-panel access. The VMIVME-7750 is capable of executing many of today’s embedded operating systems such as VxWorks, QNX, Solaris, LynxOS and Microsoft’s embedded Windows NT. The embedded features of the VMIVME-7750 are described in Chapter 3 of this manual.
